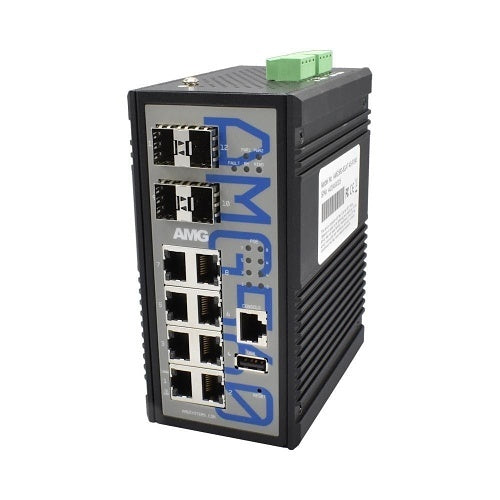

AMG Systems AMG560-8GAT-4XS-P240 industrial ethernet switch
About this product
Please note: this is a non-returnable item (excluding faulty goods)
AMG Systems AMG560-8GAT-4XS-P240 is an industrial ethernet switch from the AMG560-8G range.
AMG560 PoE series layer 2 managed industrial Ethernet switches are designed in a DIN rail / wall mount or 19" rack housing and have 12, 20 or 28 Ethernet ports in total (depending on model). 8, 16 or 24 Gigabit Ethernet RJ45 ports plus an additional 4 Gigabit only or multi-rate SFP/SFP ports providing up to 10Gb speeds for data uplink and backbone connectivity. Available with 8, 16 or 24 IEEE802.3at 30W ports or with 4 IEEE802.3at 30W ports, 2 IEEE802.3bt 60/90W ports and 2 non-PoE ports they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.
The AMG560 series support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. IGMP functionality is supported to handle the multicast traffic which is commonly used in IP CCTV deployments. A USB port is provided for easy configuration upload/download as well as automatic firmware upgrade, configuration settings on boot up and log file storage.SFPs and PSUs need to be ordered separately.
Key features
- Compact size - ideal for confined spaces, including camera poles and roadside cabinets
- 40°C to 75°C Temperature maintains performance in extreme conditions
- DIN Rail or wall mountable - quick to install and remove for maintenance
- Compliant with all IEEE 802.3 speeds (i/u/ab/z/ae)
- Supports RSTP, MSTP, ERPS, SNMP v1-3 and IGMP v1-3
- Port trunk functionality available with LACP
- IEEE 802.1x Port security enabled
- Supports 9.2K bytes jumbo frames
- Supports 15W and 30W PoE
- Digital input and relay output
Specifications
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | AMG Systems |
|---|---|
| Manufacturer Part Number | AMG560-8GAT-4XS-P240 |
| Product Series | AMG560-8G |
| Product Type | Switch |
Technical information
| Media Type Supported | Fiber Optic, Twisted Pair |
|---|---|
| Power Consumption | 20.0000W |
I/o expansions
| Number of SFP Slots | 4 |
|---|---|
| Number of Total Expansion Slots | 4 |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Total Number of Network Ports | 12 |
Management & protocols
| Manageable | Yes |
|---|
Media & performance
| Network Technology | 1000Base-T, 100Base-FX, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet), 10 Gbps, 100 Mbps (Fast Ethernet) |
|---|---|
| Networking Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Physical characteristics
| Depth | 118.00mm |
|---|---|
| Height | 145.00mm |
| Material | Aluminum |
| Width | 74.00mm |
Power description
| Input Voltage | 48-56V DC |
|---|---|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240W |
| Redundant Power Supply | Yes |
Product information
| Mount Type | DIN Rail Mount, Wall Mount |
|---|
Attributes
| Input Voltage | 48-56V DC |
|---|---|
| Number of SFP Slots | 4 |
