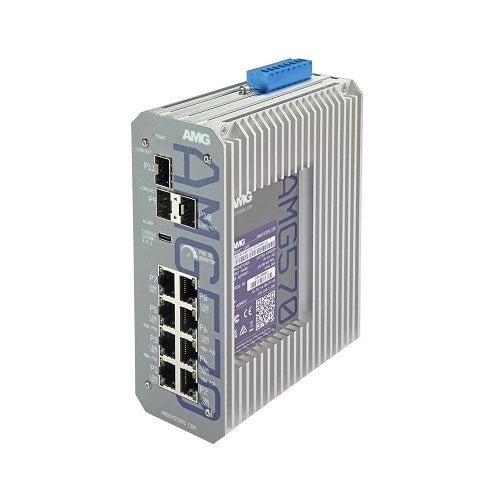

AMG Systems AMG570-4GBT-4G-3S-P290-LV industrial ethernet switch
About this product
Please note: this is a non-returnable item (excluding faulty goods)
AMG Systems AMG570-4GBT-4G-3S-P290-LV is an industrial ethernet switch from the AMG570 range.
AMG570 Series layer 2 managed industrial Ethernet switches are designed in a thermally efficient DIN rail or wall mount housing and have 8 Gigabit Ethernet RJ45 ports with an additional 3 multi-rate SFP ports that support 100Mb, 1Gb and 2.5Gb for high-speed data uplink into core networks, providing application and site flexibility. Available as a non-PoE model as well as multiple PoE models for IEEE802.3at 30W and / or IEEE802.3bt 60/90W they are suitable for powering the latest high-powered PoE devices over a wide industrial operating temperature range. The LV models feature a fully isolated 9-36VDC or 20-60VDC booster circuit with a regulated 53VDC output to supply PoE from a low-voltage power input.
The AMG570 series supports a wide range of management functions as well as Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Media Redundancy Protocol (MRP) and Ethernet Ring Protection Switching (ERPS) for network redundancy. IGMP functionality is supported to handle the multicast traffic commonly used in IP CCTV deployments.
Key features
- Innovative thermally efficient housing ensures high levels of device reliability under full load
- Maintains performance in extreme conditions -40°C to 75°C temperature
- DIN Rail or wall mountable, quick to install and remove for maintenance
- Compliant with all IEEE 802.3 speeds (i/u/ab/z)
- Triple Speed SFP ports (100MB, 1GB, 2.5GB)
- Supports RSTP, MSTP, ERPS, MRP, SNMP v1-3 and IGMP v1-3
- IEEE 802.1x Port security enabled
- Integrated low voltage DC-DC PoE booster
- Supports 10K bytes jumbo frames
- Supports 15W, 30W, 60W and 90W PoE
Specifications
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | AMG Systems |
|---|---|
| Manufacturer Part Number | AMG570-4GBT-4G-3S-P290-LV |
| Product Series | AMG570 |
| Product Type | Switch |
Technical information
| Power Consumption | 10.0000W |
|---|
I/o expansions
| Number of SFP Slots | 3 |
|---|---|
| Number of Total Expansion Slots | 3 |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Total Number of Network Ports | 11 |
Management & protocols
| Manageable | Yes |
|---|
Media & performance
| Network Technology | 1000Base-T, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|---|
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Physical characteristics
| Depth | 123.00mm |
|---|---|
| Height | 156.00mm |
| Material | Anodized Aluminum |
| Width | 59.00mm |
Power description
| Input Voltage | 9-36V DC |
|---|---|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 290W |
| Power Source | DC Power |
Miscellaneous
| Package Contents | Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG570 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG570 Series Products USB Type A to Type C Console Cable (1.5M) |
|---|
Attributes
| Input Voltage | 9-36V DC |
|---|---|
| Package Contents | Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG570 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG570 Series Products USB Type A to Type C Console Cable (1.5M) |
| Power Source | DC Power |
