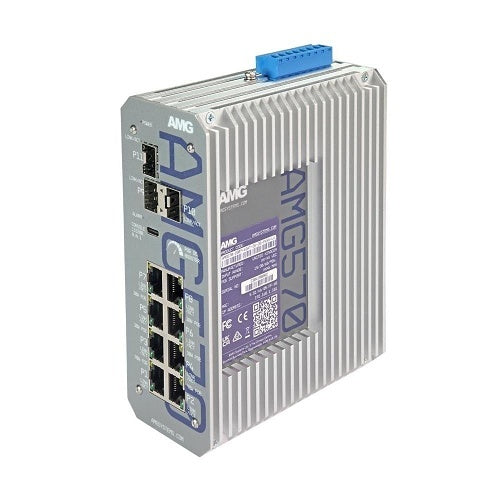

AMG Systems AMG570-2GBT-4GAT-2G-3S-P290-LV managed PoE switch

Free Delivery
£ 1,420 25
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG570-2GBT-4GAT-2G-3S-P290-LV is a managed PoE switch from the AMG570 range.

AMG570 Series layer 2 managed industrial Ethernet switches are designed in a thermally efficient DIN rail or wall mount housing and have 8 Gigabit Ethernet RJ45 ports with an additional 3 multi-rate SFP ports that support 100Mb, 1Gb and 2.5Gb for high-speed data uplink into core networks, providing application and site flexibility. Available as a non-PoE model as well as multiple PoE models for IEEE802.3at 30W and / or IEEE802.3bt 60/90W they are suitable for powering the latest high-powered PoE devices over a wide industrial operating temperature range. The LV models feature a fully isolated 9-36VDC or 20-60VDC booster circuit with a regulated 53VDC output to supply PoE from a low-voltage power input.

The AMG570 series supports a wide range of management functions as well as Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Media Redundancy Protocol (MRP) and Ethernet Ring Protection Switching (ERPS) for network redundancy. IGMP functionality is supported to handle the multicast traffic commonly used in IP CCTV deployments.

Key features

  • Innovative thermally efficient housing ensures high levels of device reliability under full load
  • Maintains performance in extreme conditions -40°C to 75°C temperature
  • DIN Rail or wall mountable, quick to install and remove for maintenance
  • Compliant with all IEEE 802.3 speeds (i/u/ab/z)
  • Triple Speed SFP ports (100MB, 1GB, 2.5GB)
  • Supports RSTP, MSTP, ERPS, MRP, SNMP v1-3 and IGMP v1-3
  • IEEE 802.1x Port security enabled
  • Integrated low voltage DC-DC PoE booster
  • Supports 10K bytes jumbo frames
  • Supports 15W, 30W, 60W and 90W PoE

If you are matching this to an existing installation, work from the AMG570-2GBT-4GAT-2G-3S-P290-LV part number rather than the description.

£ 1,420 25
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,420.25 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG570-2GBT-4GAT-2G-3S-P290-LV
Product Series
AMG570
Product Type
Switch
General information
Packaged Quantity
1
Technical information
Media Type Supported
Fiber Optic, Twisted Pair
Power Consumption
10.0000W
I/o expansions
Number of SFP Slots
3
Number of Total Expansion Slots
3
Interfaces/ports
Network (RJ-45)
Yes
Total Number of Network Ports
11
Uplink Port
Yes
Management & protocols
Manageable
Yes
Media & performance
Network Technology
1000Base-T, 100Base-FX, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet), 10 Gbps, 2.5 Gbps
Layer Supported
3
Networking Standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical characteristics
Depth
123.00mm
Height
156.00mm
Material
Anodized Aluminum
Width
59.00mm
Power description
Input Voltage
9-36V DC
PoE (RJ-45) Port
Yes
PoE Budget
290W
Power Source
DC Power
Product information
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Package Contents
DIN Rail Adapter Wall Mounting Brackets USB Console Cable
Attributes
Input Voltage
9-36V DC
Package Contents
DIN Rail Adapter Wall Mounting Brackets USB Console Cable
Power Source
DC Power

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG570-2GBT-4GAT-2G-3S-P290-LV
Product Series AMG570
Product Type Switch

General information

Packaged Quantity 1

Technical information

Media Type Supported Fiber Optic, Twisted Pair
Power Consumption 10.0000W

I/o expansions

Number of SFP Slots 3
Number of Total Expansion Slots 3

Interfaces/ports

Network (RJ-45) Yes
Total Number of Network Ports 11
Uplink Port Yes

Management & protocols

Manageable Yes

Media & performance

Network Technology 1000Base-T, 100Base-FX, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet), 10 Gbps, 2.5 Gbps
Layer Supported 3
Networking Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical characteristics

Depth 123.00mm
Height 156.00mm
Material Anodized Aluminum
Width 59.00mm

Power description

Input Voltage 9-36V DC
PoE (RJ-45) Port Yes
PoE Budget 290W
Power Source DC Power

Product information

Mount Type DIN Rail Mount, Wall Mount

Miscellaneous

Package Contents DIN Rail Adapter Wall Mounting Brackets USB Console Cable

Attributes

Input Voltage 9-36V DC
Package Contents DIN Rail Adapter Wall Mounting Brackets USB Console Cable
Power Source DC Power

AMG Systems AMG570-2GBT-4GAT-2G-3S-P290-LV managed PoE switch

AMG Systems AMG570-2GBT-4GAT-2G-3S-P290-LV managed PoE switch

Who this is for

For the installer — this is the managed PoE switch supplied under AMG Systems part number AMG570-2GBT-4GAT-2G-3S-P290-LV. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a managed PoE switch made by AMG Systems. The part number AMG570-2GBT-4GAT-2G-3S-P290-LV is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this managed PoE switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact managed PoE switch I have been quoted? Check the manufacturer part number AMG570-2GBT-4GAT-2G-3S-P290-LV against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AMG570-2GBT-4GAT-2G-3S-P290-LV answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
