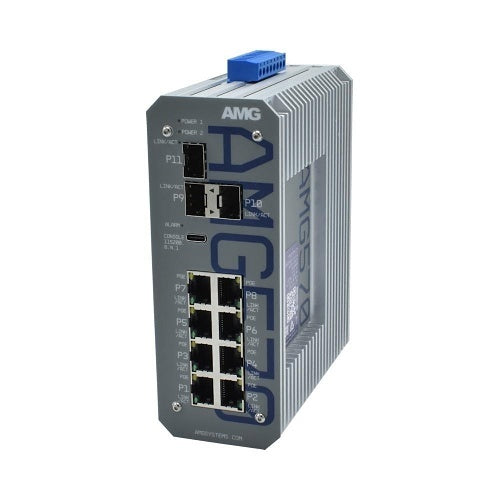

AMG Systems AMG570-4GBT-4G-3S-P360 managed switch, DIN Rail, Wall Mount

Visit Data & Networking
Free Delivery
£ 904 80
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG570-4GBT-4G-3S-P360 is a managed switch from the AMG570 range.

Industrial 11 Port Managed Switch, 4 x 10/100/1000Base-T(x) RJ45 Ports with 802.3bt 60/90W PoE, 4 x 10/100/1000Base-T(x) RJ45 Ports, 3 x 100/1000/2.5G Base-FX SFP Ports, DIN Rail / Wall Mount, -40°C to +75°C, 52-56VDC Power Input.

Key features

  • Innovative thermally efficient housing ensures high levels of device reliability under full load
  • 40°C to +75°C temperature maintains performance in extreme conditions
  • DIN rail or wall mountable - quick to install and remove for maintenance
  • Compliant with all IEEE 802.3 speeds (i/u/ab/z)
  • Triple Speed SFP ports (100Mb, 1Gb, 2.5Gb)
  • Supports RSTP, MSTP, ERPS, MRP, SNMP v1-3 and IGMP v1-3
  • IEEE 802.1x port security enabled
  • Supports 10K bytes jumbo frames
  • Supports 15W, 30W, 60W and 90W PoE
  • Layer 3 Static Routing
£ 904 80
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£904.80 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG570-4GBT-4G-3S-P360
Product Series
AMG570
Product Type
Switch
Technical information
Media Type Supported
Copper, Optical
Power Consumption
10.0000W
I/o expansions
Number of SFP Slots
3
Number of Total Expansion Slots
3
Interfaces/ports
Network (RJ-45)
Yes
Total Number of Network Ports
11
Management & protocols
Manageable
Yes
Media & performance
Network Technology
1000Base-T, 100Base-FX, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Networking Standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical characteristics
Depth
123.00mm
Height
156.00mm
Material
Anodized Aluminum
Width
59.00mm
Power description
Input Voltage
52-56V DC
PoE (RJ-45) Port
Yes
PoE Budget
360W
Product information
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Environmental certification
NEMA TS2
Environmental status
Yes
Package Contents
Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG570 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG570 Series Products USB Type A to Type C Console Cable (1.5M)
Attributes
Input Voltage
52-56V DC
Package Contents
Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG570 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG570 Series Products USB Type A to Type C Console Cable (1.5M)
Specifications
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG570-4GBT-4G-3S-P360
Product Series AMG570
Product Type Switch

Technical information

Media Type Supported Copper, Optical
Power Consumption 10.0000W

I/o expansions

Number of SFP Slots 3
Number of Total Expansion Slots 3

Interfaces/ports

Network (RJ-45) Yes
Total Number of Network Ports 11

Management & protocols

Manageable Yes

Media & performance

Network Technology 1000Base-T, 100Base-FX, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet)
Networking Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical characteristics

Depth 123.00mm
Height 156.00mm
Material Anodized Aluminum
Width 59.00mm

Power description

Input Voltage 52-56V DC
PoE (RJ-45) Port Yes
PoE Budget 360W

Product information

Mount Type DIN Rail Mount, Wall Mount

Miscellaneous

Environmental certification NEMA TS2
Environmental status Yes
Package Contents Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG570 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG570 Series Products USB Type A to Type C Console Cable (1.5M)

Attributes

Input Voltage 52-56V DC
Package Contents Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG570 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG570 Series Products USB Type A to Type C Console Cable (1.5M)

AMG Systems AMG570-4GBT-4G-3S-P360 managed switch

AMG Systems AMG570-4GBT-4G-3S-P360 managed switch, DIN Rail, Wall Mount

Who this is for

For the installer — this is the managed switch supplied under AMG Systems part number AMG570-4GBT-4G-3S-P360. Specify it by that part number.

In plain English: this is a managed switch made by AMG Systems. The part number AMG570-4GBT-4G-3S-P360 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this managed switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact managed switch I have been quoted? Check the manufacturer part number AMG570-4GBT-4G-3S-P360 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
