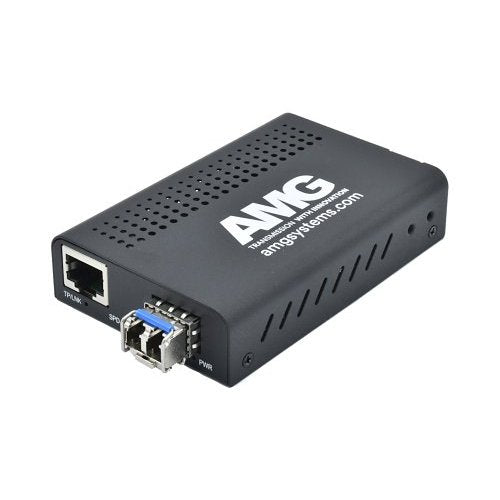

AMG Systems AMG210M-1G-1SS2 mini media converter, Rack, Surface, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
AMG Systems AMG210M-1G-1SS2 is a mini media converter from the AMG210M range.
Designed in an ultra compact housing, these mini media converters are ideally suited for connecting equipment to Ethernet networks over long distances using all types of fibre through the integrated SFP or SFP+ port. User selectable DIP switches allow for configuration of advanced features such as link fault pass-through, port isolation, jumbo frames, automatic laser shutdown and SFP speed selection. The 10Gb models support 1G, 2.5G, 5G & 10G modes as well as 3R functions for equalization amplification, clock extraction and integer regeneration for the highest 10G data performance with low transmission jitter.
The mini media coverters can be used standalone, wall mounted using the included mounting kit or can be installed within an AMG210C rack where up to 12 units can be located within a 1U 19inch rack space. The rack solution provides an ultra high density rack mount option. PSUs are included with each unit and SFPs can either be included (depending on model ordered) or can be ordered separately allowing for selection from AMG's extensive range of SFP(+) modules to suit any application.
Key features
- Ultra Compact size - ideal for confined spaces, and provides highly cost effective solutions
- Auto-Negotiation - automatically determines the best connection speed
- Wall mountable using the included wall bracket
- Rack mountable using the optional 19 inch 1U rack
- 100Mb, Multirate 100/1000Mb or 1/2.5/10Gb SFP(+) port supports singlemode and multimode, single or dual fibre options up to 120Km either included or ordered separately
- Single or dual Ethernet copper ports - high bandwidth support up to 10G BASE-T
- Supports Jumbo Frames up to 16K bytes
- Intelligent features supported including link fault pass-through, port isolation and many others.
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | AMG Systems |
|---|---|
| Manufacturer Part Number | AMG210M-1G-1SS2 |
| Product Series | AMG210M |
| Product Type | Transceiver/Media Converter |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 3.0000W |
I/o expansions
| Expansion Slot Type | SFP, SFP+ |
|---|---|
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Ports | 2 |
Media & performance
| Fibre Optic Wavelength | 1310nm |
|---|---|
| Network Technology | 1000Base-T, 100Base-TX, 10Base-T |
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|
Physical characteristics
| Depth | 60.00mm |
|---|---|
| Height | 21.00mm |
| Width | 92.00mm |
Power description
| Plug/Connector Type | LC |
|---|---|
| Power Source | AC Power, DC Power |
Product information
| Mount Type | Rack Mount, Surface Mount, Wall Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Package Contents | AMG210M Transceiver/Media Converter; DC In-line Power Supply - UK; Wall Bracket |
|---|---|
| Power Source | AC Power, DC Power |
| Number of SFP Slots | 1 |
