AMG Systems AMGANT-G1-ODA2.5-5B omni-directional antenna, Black

Visit Alarm Communicators & Diallers
£ 13 39
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

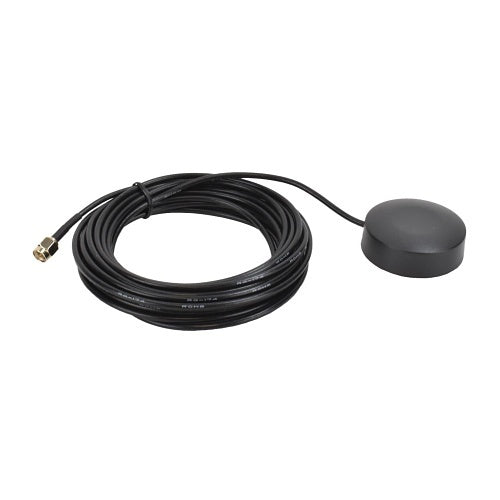

AMG Systems AMGANT-G1-ODA2.5-5B is an omni-directional antenna from the AMGANT-G1-ODA2.5 range.

Designed in a compact ABS plastic window mount housing, the AMGANT-G1-ODA2.5 series GNSS antennas are ideally suited for providing a cost effective, accurate and reliable connection to multiple global satellite positioning systems. The AMGANT-G1-ODA2.5 provides double sided tape mounting designed for fixing to a window or other suitable surface. Antenna performance is 28dB, with 2.5dBi gain and a 2.4dB typical noise figure.

Power (3 to 5VDC) and signal is applied through the same cabling directly to the antenna.Optional antenna extension cables (up to a maximum of 10M) are available and are sold separately.

Key features

  • Compact size - 46mm (1.81") diameter and 15mm (0.59") height provides low profile installation
  • 40°C to 80°C Temperature maintains performance in extreme environmental conditions
  • Window mount design with integrated double sided tape fixing
  • GNSS Antenna supports all common satellite constellations including GPS, QZSS, Galileo, GLONASS and BeiDou
  • 28dB Antenna performance with 2.5dBi gain provides good signal reception
  • Active powered antenna supporting 3 to 5 VDC
  • Supports IP65 for reliable, maintenance free installation
£ 13 39
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£13.39 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMGANT-G1-ODA2.5-5B
Product Series
AMGANT-G1-ODA2.5
Product Type
Antenna
Technical information
Antenna Type
Omnidirectional
Directivity
Omni-directional
Operating Frequency Range
1561MHz, 1575MHz, 1602MHz
Physical characteristics
Colour
Black
Depth
45.97mm
Height
14.90mm
Width
45.90mm
Wireless specifications
Antenna Gain
2dBi
Miscellaneous
Compatibility
Galileo, GLONASS & BeiDou, GPS, QZSS
Attributes
Compatibility
Galileo, GLONASS & BeiDou, GPS, QZSS
Specifications
Technical information
Physical characteristics
Wireless specifications
Miscellaneous
Attributes

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMGANT-G1-ODA2.5-5B
Product Series AMGANT-G1-ODA2.5
Product Type Antenna

Technical information

Antenna Type Omnidirectional
Directivity Omni-directional
Operating Frequency Range 1561MHz, 1575MHz, 1602MHz

Physical characteristics

Colour Black
Depth 45.97mm
Height 14.90mm
Width 45.90mm

Wireless specifications

Antenna Gain 2dBi

Miscellaneous

Compatibility Galileo, GLONASS & BeiDou, GPS, QZSS

Attributes

Compatibility Galileo, GLONASS & BeiDou, GPS, QZSS

AMG Systems AMGANT-G1-ODA2.5-5B omni-directional antenna

AMG Systems AMGANT-G1-ODA2.5-5B omni-directional antenna, Black

Who this is for

For the installer — this is the omni-directional antenna supplied under AMG Systems part number AMGANT-G1-ODA2.5-5B. Specify it by that part number.

In plain English: this is an omni-directional antenna made by AMG Systems. The part number AMGANT-G1-ODA2.5-5B is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this omni-directional antenna is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact omni-directional antenna I have been quoted? Check the manufacturer part number AMGANT-G1-ODA2.5-5B against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
