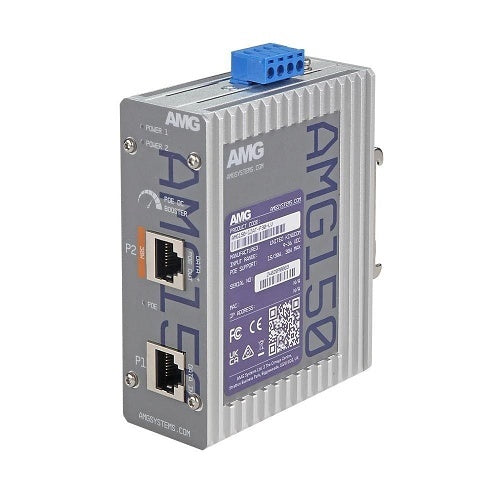

AMG Systems AMG150-1GAT-P30-LV PoE injector, DIN Rail, Wall Mount

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG150-1GAT-P30-LV is a PoE injector from the AMG150 range.

Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices. Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W models they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range. The LV models feature a fully isolated 9-36VDC or 20-60VDC booster circuit with a regulated 53VDC output to supply PoE from a low voltage power input.Designed as standard single-Channel injectors supporting 1Gb Ethernet or 1/2.5/5/10Gb Ethernet depending on the model selected.Fitted with dual redundant power inputs and robust surge protection ensures maximum operating reliability and the highest levels of performance.

A wide range of models are available to suit all design requirements.PSUs need to be ordered separately.

Key features

• Compact size; ideal for confined spaces, including camera poles and roadside cabinets
• 40°C to 75°C Temperature maintains performance in extreme conditions
• Plug and Play; no need for any user configuration
• DIN Rail mountable; quick to install and remove for maintenance
• RJ45 Ports support all standard 10/100/1000Mb speeds
• Dual redundant 9-36VDC power inputs with voltage booster
• Supports 15W and 30W PoE
• Integrated surge protection with up to 20kA discharge capability for maximum protection in harsh environments
• Designed in the USA and UK. Manufactured in the United Kingdom
