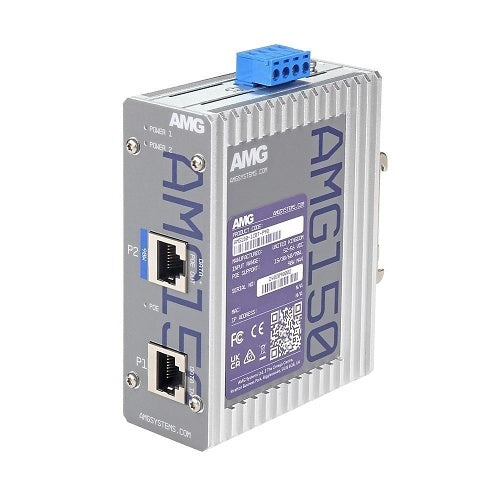

AMG Systems AMG150-1XBT-P90 PoE injector, Wall Mount

Visit Data & Networking
Free Delivery
£ 241 94
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG150-1XBT-P90 is a PoE injector from the AMG150 range.

Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices. Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W models they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.Designed as standard single-Channel injectors supporting 1Gb Ethernet or 1/2.5/5/10Gb Ethernet depending on the model selected.Fitted with dual redundant power inputs and robust surge protection ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements.PSUs need to be ordered separately.

Key features

  • Compact size; ideal for confined spaces, including camera poles and roadside cabinets
  • 40°C to 75°C Temperature maintains performance in extreme conditions
  • Plug and Play; no need for any user configuration
  • DIN Rail mountable; quick to install and remove for maintenance
  • RJ45 Ports support 1/2.5/5/10Gb speeds
  • Dual redundant power inputs
  • Supports 15W, 30W, 60W and 90W PoE
  • Integrated surge protection with up to 20kA discharge capability for maximum protection in harsh environments
  • Designed in the USA and UK. Manufactured in the United Kingdom
£ 241 94
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£241.94 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG150-1XBT-P90
Product Series
AMG150
Product Type
PoE Injector
General information
Packaged Quantity
1
Environmental conditions
Operating Relative Humidity (H-H)
5-95%
Operating Temperature (T-T)
-40-75°C
Storage Temperature (T-T)
-40-85°C
Interfaces/ports
Input Ports
RJ-45
Output Ports
RJ-45
Network & communication
Networking Standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Physical characteristics
Depth
88.00mm
Form Factor
Wall Mount
Height
107.00mm
Width
37.00mm
Power description
Input Voltage
52-56V DC
Power over Ethernet (PoE)
Yes
Product information
Mount Type
DIN Rail Mount, Wall Mount
Protection Type
Overload Protection, Surge Protection
Miscellaneous
Package Contents
Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG150 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG150 Series Products
Attributes
Input Voltage
52-56V DC
Package Contents
Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG150 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG150 Series Products
Specifications
General information
Environmental conditions
Interfaces/ports
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG150-1XBT-P90
Product Series AMG150
Product Type PoE Injector

General information

Packaged Quantity 1

Environmental conditions

Operating Relative Humidity (H-H) 5-95%
Operating Temperature (T-T) -40-75°C
Storage Temperature (T-T) -40-85°C

Interfaces/ports

Input Ports RJ-45
Output Ports RJ-45

Network & communication

Networking Standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u

Physical characteristics

Depth 88.00mm
Form Factor Wall Mount
Height 107.00mm
Width 37.00mm

Power description

Input Voltage 52-56V DC
Power over Ethernet (PoE) Yes

Product information

Mount Type DIN Rail Mount, Wall Mount
Protection Type Overload Protection, Surge Protection

Miscellaneous

Package Contents Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG150 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG150 Series Products

Attributes

Input Voltage 52-56V DC
Package Contents Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG150 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG150 Series Products

AMG Systems AMG150-1XBT-P90 PoE injector

AMG Systems AMG150-1XBT-P90 PoE injector, Wall Mount

Who this is for

For the installer — this is the PoE injector supplied under AMG Systems part number AMG150-1XBT-P90. Specify it by that part number.

In plain English: this is a PoE injector made by AMG Systems. The part number AMG150-1XBT-P90 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this PoE injector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact PoE injector I have been quoted? Check the manufacturer part number AMG150-1XBT-P90 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

AMG Systems AMG150-1XBT-P90 PoE injector
AMG Systems

AMG Systems AMG150-1XBT-P90 PoE injector, Wall Mount

£241.94

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG150-1XBT-P90 is a PoE injector from the AMG150 range.

Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) injectors are ideally suited for providing power to remote edge network devices. Available in both IEEE802.3at 30W or IEEE802.3bt 60/90W models they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.Designed as standard single-Channel injectors supporting 1Gb Ethernet or 1/2.5/5/10Gb Ethernet depending on the model selected.Fitted with dual redundant power inputs and robust surge protection ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements.PSUs need to be ordered separately.
