AMG Systems AMG110-2X-SP surge protector, Anodised Aluminium

£ 110 83
(Incl. VAT) RRP: £133.00
Save £22.17

About this product

Please note: this is a non-returnable item (excluding faulty goods)

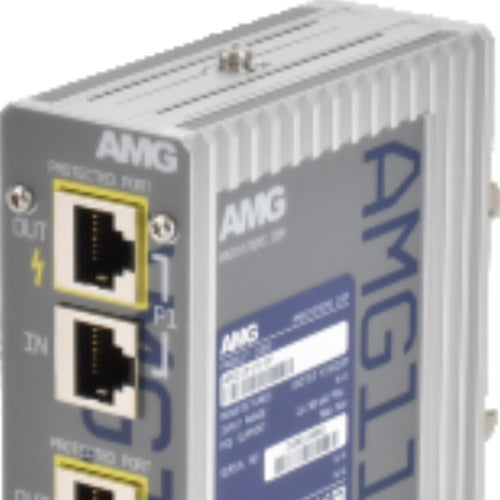

AMG Systems AMG110-2X-SP is a surge protector from the AMG110 range.

Dual Channel Industrial PoE Surge Protector, 2 x 10/100/1000/2.5G/5G/10GBase-T(x) RJ45 Ports (Inputs), 2 x 10/100/1000/2.5G/5G/10GBase-T(x) RJ45 Ports With 20kA Surge Protection (Outputs), 95W PoE Support, DIN Rail / Wall Mount, -40°C to +85°C. Designed in a compact DIN rail or wall mount housing, the AMG110 series industrial Power over Ethernet (PoE) surge protectors are ideally suited for protecting network devices that may be susceptible to damage from surge or voltage transient events. Designed as a dual channel surge protector supporting 1/2.5/5/10Gb Ethernet and transparent to all types of PoE including IEEE802.3at 30W or IEEE802.3bt 60/90W and non-standard PoE such as 95W.

Industry leading protection is provided to EN61000-4-5 and IEC/EN 61643-21 standards. To ensure the correct protection the AMG110 must be correctly grounded to ensure any surge or transient voltage has an obstruction free path to ground which then protects the connected equipment from damage.

Key features

  • Its compact size is ideal for confined spaces, including camera poles and roadside cabinets
  • 40°C to +85°C temperature maintains performance in extreme conditions
  • Plug and Play - no need for any user configuration
  • DIN rail or wall mountable, quick to install and remove for maintenance (an optional magnetic mount is also available)
  • RJ45 ports support 1/2.5/5/10Gb speeds
  • Supports 15W, 30W, 60W, 90W and 95W PoE
  • Integrated surge protection with up to 20kA discharge capability for maximum protection

If you are matching this to an existing installation, work from the AMG110-2X-SP part number rather than the description.

£ 110 83
RRP: £133.00 Save £22.17
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£110.83 Incl. VAT £133.00
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG110-2X-SP
Product Series
AMG110
Product Type
Surge Protector
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Physical characteristics
Depth
88.00mm
Height
107.00mm
Material
Anodised Aluminium
Width
37.00mm
Miscellaneous
Environmental certification
Reach, RoHS, WEEE
Attributes
Environmental status
Yes
Specifications
Certifications
Physical characteristics
Miscellaneous
Attributes

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG110-2X-SP
Product Series AMG110
Product Type Surge Protector

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Physical characteristics

Depth 88.00mm
Height 107.00mm
Material Anodised Aluminium
Width 37.00mm

Miscellaneous

Environmental certification Reach, RoHS, WEEE

Attributes

Environmental status Yes

AMG Systems AMG110-2X-SP surge protector

AMG Systems AMG110-2X-SP surge protector, Anodised Aluminium

Who this is for

For the installer — this is the surge protector supplied under AMG Systems part number AMG110-2X-SP. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a surge protector made by AMG Systems. The part number AMG110-2X-SP is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this surge protector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact surge protector I have been quoted? Check the manufacturer part number AMG110-2X-SP against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AMG110-2X-SP answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

AMG Systems AMG110-2X-SP surge protector
AMG Systems

AMG Systems AMG110-2X-SP surge protector, Anodised Aluminium

£110.83 £133.00

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG110-2X-SP is a surge protector from the AMG110 range.

Dual Channel Industrial PoE Surge Protector, 2 x 10/100/1000/2.5G/5G/10GBase-T(x) RJ45 Ports (Inputs), 2 x 10/100/1000/2.5G/5G/10GBase-T(x) RJ45 Ports With 20kA Surge Protection (Outputs), 95W PoE Support, DIN Rail / Wall Mount, -40°C to +85°C. Designed in a compact DIN rail or wall mount housing, the AMG110 series industrial Power over Ethernet (PoE) surge protectors are ideally suited for protecting network devices that may be susceptible to damage from surge or voltage transient events. Designed as a dual channel surge protector supporting 1/2.5/5/10Gb Ethernet and transparent to all types of PoE including IEEE802.3at 30W or IEEE802.3bt 60/90W and non-standard PoE such as 95W.

Industry leading protection is provided to EN61000-4-5 and IEC/EN 61643-21 standards. To ensure the correct protection the AMG110 must be correctly grounded to ensure any surge or transient voltage has an obstruction free path to ground which then protects the connected equipment from damage.

Key features

If you are matching this to an existing installation, work from the AMG110-2X-SP part number rather than the description.
