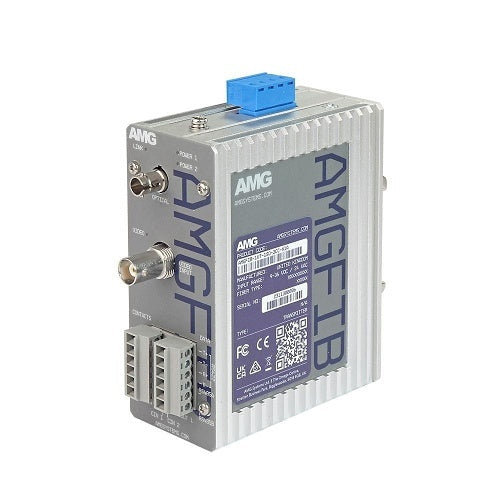

AMG Systems AMGFIB-1VT-1SD-3CC-S1A transceiver, DIN Rail Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
AMG Systems AMGFIB-1VT-1SD-3CC-S1A is a transceiver from the AMGFIB range.
Designed in a compact DIN rail or wall mount housing, the AMGFIB series provide digital uncompressed transmission of the latest standard definition and high definition camera signals coupled with one serial data and three contact closure-Channels for remote input detection and relay control. The units support all modern SD and HD video formats including CVBS (PAL, NTSC, SECAM), CVI, TVI and AHD and camera resolutions up to 1960p with SD, HD, 2 megapixel, 3 megapixel, 4 megapixel and 5 megapixel camera types supported from all major brands. The serial data-Channel supports one RS422 or RS485 data-Channel in 2-wire and 4-wire mode in both directions.
The three contact closure-Channels support two-Channels in the video direction (A to B) and one-Channel in the reverse direction (B to A).Fitted with dual redundant power inputs supporting both DC and AC low voltage inputs ensures maximum operating reliability and the highest levels of performance.PSUs need to be ordered separately.
Key features
- Compact size - ideal for confined spaces, including camera poles and roadside cabinets
- 40°C to 75°C Temperature maintains performance in extreme conditions
- Plug and Play - no need for any user configuration
- DIN Rail mountable - quick to install and remove for maintenance
- Dual redundant power inputs with DC and AC support
- Supports all the latest SD and HD video formats including CVI, TVI, AHD and CVBS composite
- SD, HD, 2MP, 3MP, 4MP and 5MP Cameras supported
- 2-Wire and 4-Wire RS422/485 Data-Channel
- 3 Contact closure-Channels provided
- Designed in the USA and UK. Manufactured in the United Kingdom
-
Download
- AMGFIB-1VT-1SD-3CC-S1A — User Manual
Specifications
Technical information
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | AMG Systems |
|---|---|
| Manufacturer Part Number | AMGFIB-1VT-1SD-3CC-S1A |
| Product Series | AMGFIB |
| Product Type | Transceiver |
Technical information
| Fibre Optic Mode | Single-mode |
|---|---|
| Power Consumption | 3.5000W |
Interfaces/ports
| Number of ST Ports | 1 |
|---|
Physical characteristics
| Depth | 107.00mm |
|---|---|
| Height | 44.00mm |
| Width | 88.00mm |
Power description
| Power Source | AC Power, DC Power |
|---|
Product information
| Mount Type | DIN Rail Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | DIN Rail Adapter 2 x Wall Mounting Brackets |
Attributes
| Package Contents | DIN Rail Adapter 2 x Wall Mounting Brackets |
|---|---|
| Power Source | AC Power, DC Power |
