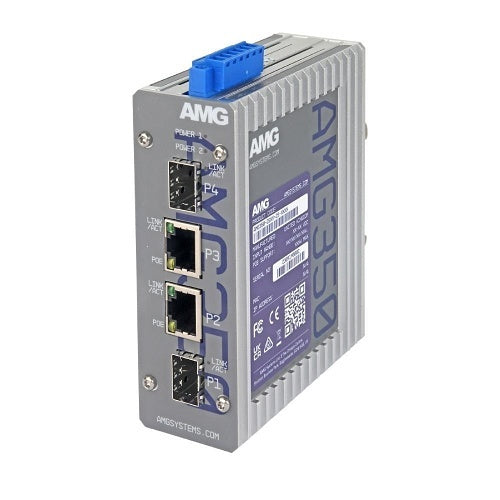

AMG Systems AMG350-2G-2S unmanaged switch, DIN Rail Mount

Free Delivery
£ 265 80
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG350-2G-2S is an unmanaged switch from the AMG350-2G-2S range.

AMG’s unmanaged Ethernet switches provide Gigabit Ethernet switching for simple edge network applications with optional 30W or 60/90W PoE. Available with a combination of 2x RJ45 and 2x SFP ports for maximum system flexibility. Designed in a compact DIN rail / wall mount housing, the AMG350-2G-2S series unmanaged Ethernet switches are ideally suited for connecting edge devices to Ethernet networks where more complex management functions are not required.

Long distance connections are supported using all types of fiber through the integrated SFP port(s). Fiber connectivity is determined by separate SFP device selection, providing application and site flexibility. Available in both non-PoE models as well as PoE models for IEEE802.3at 30W or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.

The DIN rail / wall mount models are fitted with dual redundant power inputs and power failure alarm relay ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements. SFPs and PSUs need to be ordered separately.

Key features

  • 4-Port unmanaged Switch for Edge Networks
  • 2x 100/1000Base-Fx SFP Ports for fibre
  • 12-36VDC Power input
  • Optional PoE models for high-power devices
  • Dual redundant power inputs
  • Power failure alarm relay

If you are matching this to an existing installation, work from the AMG350-2G-2S part number rather than the description.

£ 265 80
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£265.80 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG350-2G-2S
Product Series
AMG350-2G-2S
Product Type
Switch
Technical information
Media Type Supported
Fiber Optic, Twisted Pair
Power Consumption
4.0000W
I/o expansions
Number of SFP Slots
2
Number of Total Expansion Slots
2
Interfaces/ports
Network (RJ-45)
Yes
Total Number of Network Ports
2
Management & protocols
Manageable
No
Media & performance
Network Technology
1000Base-T, 100Base-FX, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Networking Standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Physical characteristics
Depth
88.00mm
Height
107.00mm
Material
Anodized Aluminum
Width
36.00mm
Power description
Input Voltage
10-36V DC
PoE (RJ-45) Port
No
Redundant Power Supply
Yes
Product information
Mount Type
DIN Rail Mount
Miscellaneous
Package Contents
Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG350 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG350 Series Products
Attributes
Input Voltage
10-36V DC
Package Contents
Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG350 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG350 Series Products

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG350-2G-2S
Product Series AMG350-2G-2S
Product Type Switch

Technical information

Media Type Supported Fiber Optic, Twisted Pair
Power Consumption 4.0000W

I/o expansions

Number of SFP Slots 2
Number of Total Expansion Slots 2

Interfaces/ports

Network (RJ-45) Yes
Total Number of Network Ports 2

Management & protocols

Manageable No

Media & performance

Network Technology 1000Base-T, 100Base-FX, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet)
Networking Standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical characteristics

Depth 88.00mm
Height 107.00mm
Material Anodized Aluminum
Width 36.00mm

Power description

Input Voltage 10-36V DC
PoE (RJ-45) Port No
Redundant Power Supply Yes

Product information

Mount Type DIN Rail Mount

Miscellaneous

Package Contents Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG350 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG350 Series Products

Attributes

Input Voltage 10-36V DC
Package Contents Rear Mounted Metal DIN Rail Clip and Screws For DIN Rail Mounting AMG350 Series Products 2x Wall Mouting Brackets and Screws For Wall / Surface Mouting AMG350 Series Products

AMG Systems AMG350-2G-2S unmanaged switch

AMG Systems AMG350-2G-2S unmanaged switch, DIN Rail Mount

Who this is for

For the installer — this is the unmanaged switch supplied under AMG Systems part number AMG350-2G-2S. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an unmanaged switch made by AMG Systems. The part number AMG350-2G-2S is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this unmanaged switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact unmanaged switch I have been quoted? Check the manufacturer part number AMG350-2G-2S against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AMG350-2G-2S answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

AMG Systems AMG350-2G-2S unmanaged switch
AMG Systems

AMG Systems AMG350-2G-2S unmanaged switch, DIN Rail Mount

£265.80

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG350-2G-2S is an unmanaged switch from the AMG350-2G-2S range.

AMG’s unmanaged Ethernet switches provide Gigabit Ethernet switching for simple edge network applications with optional 30W or 60/90W PoE. Available with a combination of 2x RJ45 and 2x SFP ports for maximum system flexibility. Designed in a compact DIN rail / wall mount housing, the AMG350-2G-2S series unmanaged Ethernet switches are ideally suited for connecting edge devices to Ethernet networks where more complex management functions are not required.

Long distance connections are supported using all types of fiber through the integrated SFP port(s). Fiber connectivity is determined by separate SFP device selection, providing application and site flexibility. Available in both non-PoE models as well as PoE models for IEEE802.3at 30W or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.

The DIN rail / wall mount models are fitted with dual redundant power inputs and power failure alarm relay ensures maximum operating reliability and the highest levels of performance. A wide range of models are available to suit all design requirements. SFPs and PSUs need to be ordered separately.

Key features

If you are matching this to an existing installation, work from the AMG350-2G-2S part number rather than the description.

View product
