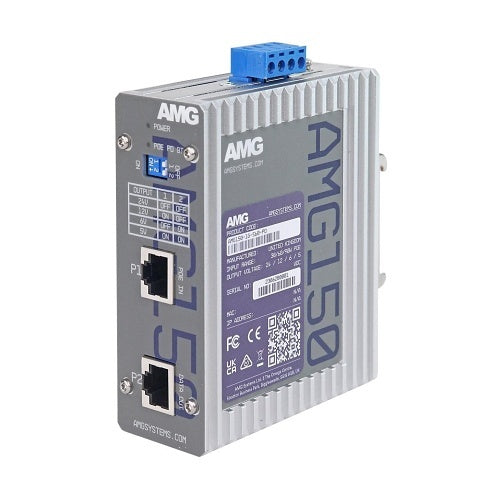

AMG Systems AMG150-1G-S60-PD usa PoE router, DIN Rail, Wall Mount

Free Delivery
£ 201 62
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

AMG Systems AMG150-1G-S60-PD is an usa PoE router from the AMG150 range.

Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) splitters are ideally suited for providing power to remote devices that require low voltage DC inputs from a PoE enabled source. The splitter is powered by an IEEE802.3af, at or bt PoE PD with support for a 15, 30, 60 or 90W input and coverts this power through a high efficiency DC-DC converter and provides from 25W to 60W (5A Max) of available low voltage DC power in user selectable 5, 6, 12 or 24VDC voltages available on the dual output power screw terminal connector. The splitter is compatible with any manufacturers IEEE802.3af, at or bt compliant PoE source device (PSE).

The Ethernet ports support transparent 10/100/1000Mb data traffic pass-through.Fitted with robust surge and ESD protection ensures maximum operating reliability and the highest levels of performance.

Key features

  • Compact size; ideal for confined spaces, including camera poles and roadside cabinets
  • 40°C to 75°C Temperature maintains performance in extreme conditions
  • Plug and Play; no need for any user configuration
  • DIN Rail mountable; quick to install and remove for maintenance
  • RJ45 Ports support 10/100/1000Mb speeds
  • IEEE802.3af/at/bt 15/30/60/90W PoE PD power
  • User selectable 5/6/12/24VDC output voltage
  • Output power of up to 60W or 5 Amps (whichever is reached first for the respective voltage)
  • Integrated surge and ESD protection for maximum protection in harsh environments
  • Designed in the USA and UK. Manufactured in the United Kingdom
£ 201 62
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£201.62 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
AMG Systems
Manufacturer Part Number
AMG150-1G-S60-PD
Product Series
AMG150
Product Type
PoE Injector
Environmental conditions
Operating Relative Humidity (H-H)
5-95%
Operating Temperature (T-T)
-40-75°C
Storage Temperature (T-T)
-40-85°C
Interfaces/ports
Input Ports
1 x RJ-45 (PoE PD)
Output Ports
DC, RJ-45
Network & communication
Networking Standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Physical characteristics
Depth
88.00mm
Form Factor
DIN Rail, Wall Mount
Height
107.00mm
Width
37.00mm
Power description
Input Voltage
42.5-56V DC
Maximum Output Current
5.0A
Maximum Output Power
60.00W
Maximum Output Voltage
24V
Power over Ethernet (PoE)
Yes
Product information
Mount Type
DIN Rail Mount, Wall Mount
Protection Type
Overload Protection
Miscellaneous
Cables Included
Yes
Attributes
Input Voltage
42.5-56V DC
Maximum Output Power
60.00W
Package Contents
AMG150-1G-S60-PD; Rear Mounted Metal DIN Rail Clip and Screws; 2x Wall Mounting Brackets and Screws; 1x 400mm DC Power Cable; 1x 300mm DC Power Cable

Specifications

Brand Name AMG Systems
Manufacturer Part Number AMG150-1G-S60-PD
Product Series AMG150
Product Type PoE Injector

Environmental conditions

Operating Relative Humidity (H-H) 5-95%
Operating Temperature (T-T) -40-75°C
Storage Temperature (T-T) -40-85°C

Interfaces/ports

Input Ports 1 x RJ-45 (PoE PD)
Output Ports DC, RJ-45

Network & communication

Networking Standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u

Physical characteristics

Depth 88.00mm
Form Factor DIN Rail, Wall Mount
Height 107.00mm
Width 37.00mm

Power description

Input Voltage 42.5-56V DC
Maximum Output Current 5.0A
Maximum Output Power 60.00W
Maximum Output Voltage 24V
Power over Ethernet (PoE) Yes

Product information

Mount Type DIN Rail Mount, Wall Mount
Protection Type Overload Protection

Miscellaneous

Cables Included Yes

Attributes

Input Voltage 42.5-56V DC
Maximum Output Power 60.00W
Package Contents AMG150-1G-S60-PD; Rear Mounted Metal DIN Rail Clip and Screws; 2x Wall Mounting Brackets and Screws; 1x 400mm DC Power Cable; 1x 300mm DC Power Cable

AMG Systems AMG150-1G-S60-PD usa PoE router

AMG Systems AMG150-1G-S60-PD usa PoE router, DIN Rail, Wall Mount

Who this is for

For the installer — this is the usa PoE router supplied under AMG Systems part number AMG150-1G-S60-PD. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is an usa PoE router made by AMG Systems. The part number AMG150-1G-S60-PD is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this usa PoE router is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact usa PoE router I have been quoted? Check the manufacturer part number AMG150-1G-S60-PD against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AMG150-1G-S60-PD answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
