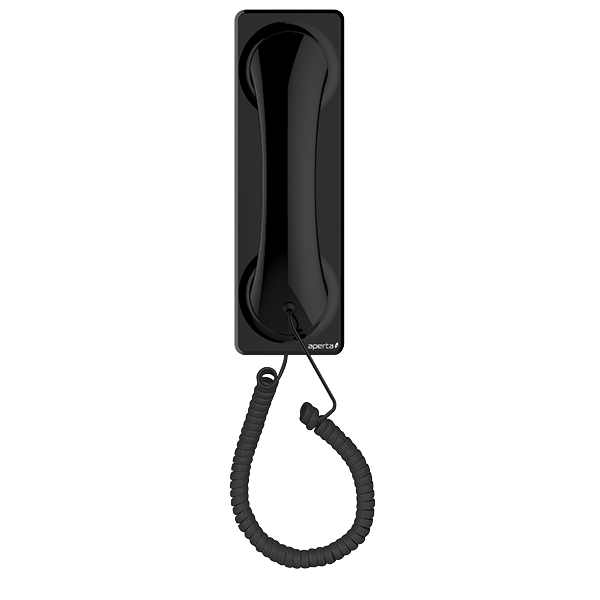

Aperta APAUDHBLK Door Entry Handset, Black
£
56
53
(Incl. VAT)
2 Years Warranty
Door Entry Handset, Black
About this product
About this product
The Aperta APAUDHBLK, from ESP's Access Control range, is a gloss black door entry handset with a magnetic receiver holster. Its two-way audio is full duplex, it has a lock release facility, and it suits single or multi way installations.
Key features
- Suitable for single or multi way installations
- Simple 2 core cable installation; recommended BUS cable Cat5e or higher
- Clear two-way audio, full duplex; volume adjustment
- Lock release facility (lock button)
- Magnetic receiver holster
- Gloss black ABS, surface mounting
- 24 V DC (BUS); effective distance to power supply 100 m
Frequently asked questions
What colour is the APAUDHBLK?
Gloss black: the finish is gloss black and the colour black.
How does it connect?
Simple 2 core cable installation on the BUS, at 24 V DC; the recommended BUS cable is Cat5e or higher.
Is it for single way or multi way systems?
Both: it is for use with both single way & multiway applications.
How is the handset stored?
In a magnetic receiver holster.
Which power supplies and door stations does it work with?
The APPOWSWDR singleway BUS power supply, the APSEPMW power bus separator unit for multiway systems, and the APDSSW, APDSSWKP, APDSMW and APDSPXMW door stations.
-
Download
- APAUDHBLK Tech Sheet
£
56
53
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
245 x 78 x 50
Operating Voltage (V DC)
24 (BUS)
Finish
Gloss Black
Effective Distance to PowerSupply (M)
100
Materials
ABS
Recommended BUS Cable
Cat5e or higher
Mounting
Surface
Communication Protocol
BUS
Weight (Kg)
0.315
Warranty (Years)
2
Adjustments
Volume
User Interaction
Lock button
Operating Temperature (°C)
0 to +40
Supplied
Fixing Screws, and Wall Plugs, User Manual
Compatible Products
APPOWSWDR: Aperta Singleway BUS power supply; APSEPMW: Power Bus Separator Unit For MultiWay System; APDSSW: Aperta BUS Single Way Door Station; APDSSWKP: Aperta BUS Single Way Door Station With Keypad; APDSMW: Aperta BUS Multi Way Door Station; APDSPXMW: Aperta BUS Multi Way Proximity Door Station
Additional Information
Simple 2-core Installation; For use with both Single way & Multiway Applications
Colour
Black
Audio
Full Duplex
Ingress Protection
IP20
Features
Magnetic Receiver Holster
Dimensions
Dimensions (mm)
245 x 78 x 50
Specifications
| Dimensions (mm) | 245 x 78 x 50 |
|---|---|
| Operating Voltage (V DC) | 24 (BUS) |
| Finish | Gloss Black |
| Effective Distance to PowerSupply (M) | 100 |
| Materials | ABS |
| Recommended BUS Cable | Cat5e or higher |
| Mounting | Surface |
| Communication Protocol | BUS |
| Weight (Kg) | 0.315 |
| Warranty (Years) | 2 |
| Adjustments | Volume |
| User Interaction | Lock button |
| Operating Temperature (°C) | 0 to +40 |
| Supplied | Fixing Screws, and Wall Plugs, User Manual |
| Compatible Products | APPOWSWDR: Aperta Singleway BUS power supply; APSEPMW: Power Bus Separator Unit For MultiWay System; APDSSW: Aperta BUS Single Way Door Station; APDSSWKP: Aperta BUS Single Way Door Station With Keypad; APDSMW: Aperta BUS Multi Way Door Station; APDSPXMW: Aperta BUS Multi Way Proximity Door Station |
| Additional Information | Simple 2-core Installation; For use with both Single way & Multiway Applications |
| Colour | Black |
| Audio | Full Duplex |
| Ingress Protection | IP20 |
| Features | Magnetic Receiver Holster |
Dimensions
| Dimensions (mm) | 245 x 78 x 50 |
|---|
