Aperta EZT3K Single Door Internal Keypad Kit, Flush Exit Button, Silver
About this product

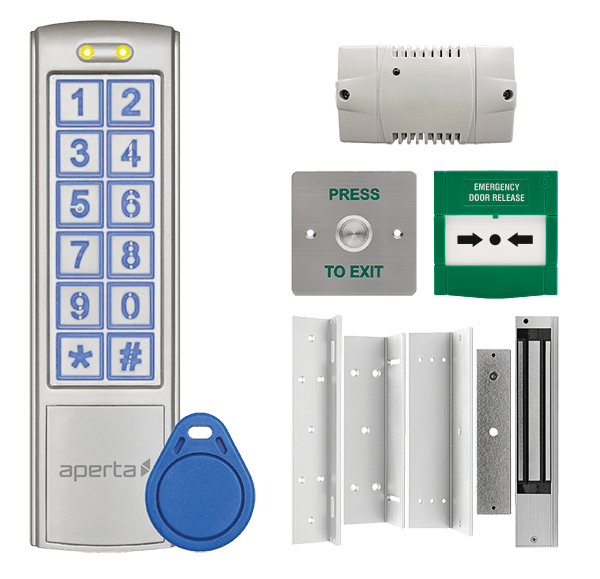

The Aperta EZT3K, from ESP's Access Control range, is a single internal door proximity and keypad kit with a flush exit button. It combines the EZTAG3 proximity and keypad door entry unit, the EVBPSBB power supply unit with optional battery backup, the A1EXIT flush push-to-exit button, the A1ECP green internal emergency call point and the A1ML250 250kg magnetic lock, and is supplied with 10 proximity tags.
Key features
- EZTAG3 backlit keypad and proximity reader, silver aluminium
- Up to 1000 fobs/PINs in zone 1 and 10 in zone 2
- Supplied with 10 proximity tags
- A1ML250 internal magnetic lock, 250kg holding force, with Z and L brackets
- A1EXIT flush push-to-exit button in brushed stainless steel
- A1ECP green internal emergency call point
- EVBPSBB power supply unit with optional battery backup: 100 - 230 V AC in, 12V DC @ 1.5A lock output
- EZTAG3: 2 lock outputs, latched and unlatched operation, PIN length 2 - 6 digits
Frequently asked questions
What is in the EZT3K kit?
1 x EZTAG3 proximity and keypad unit, 1 x EVBPSBB power supply unit, 1 x A1EXIT flush exit button, 1 x A1ECP green internal emergency call point and 1 x A1ML250 magnetic lock, plus 10 proximity tags.
How many users can the keypad hold?
Up to 1000 fobs/PINs in zone 1 and 10 in zone 2.
How strong is the lock?
The A1ML250 has a maximum holding force of 250kg.
How is the kit powered?
The EVBPSBB power supply unit takes 100 - 230 V AC, gives a 12V DC @ 1.5A lock output and has optional battery backup.
How long can PIN codes be?
2 - 6 digits.
Does the kit include an emergency call point?
Yes. It includes the A1ECP green internal emergency call point.
-
Download
- EZT3K Tech Sheet
Specifications
Dimensions
Specifications
| Magnetic lock (A1ML250) dimensions (mm) | 48 x 250 x 27 |
|---|---|
| Keypad and magnetic lock colour | Silver |
| Magnetic lock (A1ML250) materials | Aluminium Alloy |
| Magnetic lock (A1ML250) mounting | Surface Only |
| Keypad (EZTAG3) supply voltage (V AC) | 12 - 24 |
| Fob Reader Operating Distance (mm) | <50 |
| Keypad (EZTAG3) operation type | Latched & Unlatched |
| Status Indication | Red, Green, and Amber LEDs |
| Power supply (EVBPSBB) lock output | 12V DC @ 1.5A |
| Magnetic lock (A1ML250) operating voltage (V DC) | 12 & 24 |
| Keypad (EZTAG3) operating current (mA) | 110 |
| Unlatched Relay Time | 1 - 99 Seconds |
| Keypad (EZTAG3) maximum switchable load | 30V @ 4A |
| Keypad (EZTAG3) lock outputs | 2 |
| PIN Length | 2 - 6 Digits |
| Exit button (A1EXIT) finish | Brushed Steel |
| Exit button (A1EXIT) relay voltage | 125-250V |
| Exit button and call point output relay rating | 3A @125-250V AC |
| Exit button (A1EXIT) contact type | 2 x SPST (Normally Open & Normally Closed) |
| Magnetic lock (A1ML250) operating temperature (°C) | -20 to +50 |
| Maximum Holding Force (Kg) | 250 |
| Warranty Years | 2 |
| Exit button type | Flush |
| Callpoint supplied | 1 x A1ECP (Green Internal Emergency Call Point) |
Dimensions
| Keypad (EZTAG3) (mm) | 150 x 44 x 24 |
|---|---|
| Power supply (EVBPSBB) (mm) | 129 x 73 x 50 |
| Exit button (A1EXIT) (mm) | 86 x 86 x 22 |
| Call point (A1ECP) (mm) | 87.5 x 87.5 x 32 |
| Magnetic lock (A1ML250) (mm) | 48 x 250 x 27 |
