Aperta EZT3KCB Single Door Internal Keypad Kit, Contactless Exit Button & Green Callpoint, Black
About this product

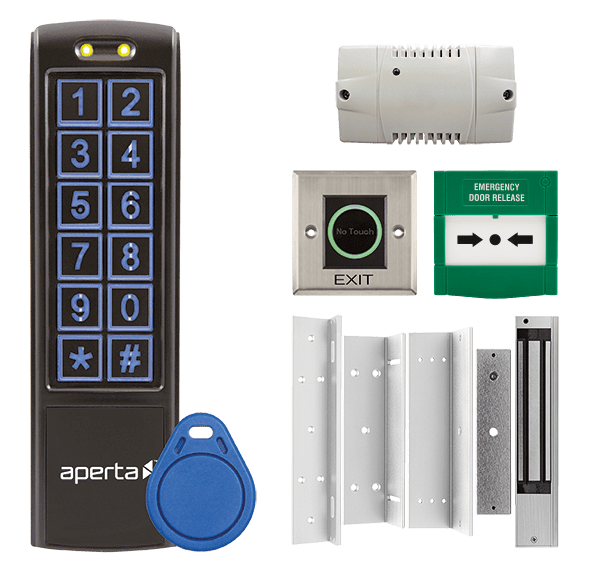

The Aperta EZT3KCB, from ESP's Access Control range, is a single internal door proximity and keypad kit with a contactless exit button and an internal green call point. It brings together the EZTAG3B keypad in black, the EVBPSBB power supply unit with optional battery backup, the EVEXITC contactless release exit button, the A1ECP green internal emergency call point and the A1ML250 250kg magnetic lock, with 10 proximity tags.
Key features
- EZTAG3B backlit proximity and keypad door entry unit, black aluminium alloy
- Up to 1000 fobs/PINs in zone 1 and 10 in zone 2
- Supplied with 10 proximity tags
- EVEXITC contactless release exit button in stainless steel
- A1ECP green internal emergency call point
- A1ML250 internal magnetic lock, 250kg holding force, with Z and L brackets
- Power supply unit provided: EVBPSBB, 100 - 230 V AC in, 12V DC @ 1.5A lock output, optional battery backup
- Keypad: 2 lock outputs, latched and unlatched operation, PINs of 2 - 6 digits
Frequently asked questions
What comes in the EZT3KCB kit?
1 x EZTAG3B keypad, 1 x EVBPSBB power supply unit, 1 x EVEXITC contactless exit button, 1 x A1ECP green internal emergency call point and 1 x A1ML250 magnetic lock, plus 10 proximity tags.
How does the exit button work?
The EVEXITC is a contactless release exit button.
How many users can the keypad store?
Up to 1000 fobs/PINs in zone 1 and 10 in zone 2.
How strong is the magnetic lock?
The A1ML250 has a maximum holding force of 250kg.
What colour is the keypad?
Black. The A1ML250 lock is silver and the A1ECP call point green.
-
Download
- EZT3KCB Tech Sheet
Specifications
Dimensions
Specifications
| Fob Reader Operating Distance (mm) | <50 |
|---|---|
| Status Indication | Red, Green, and Amber LEDs |
| Unlatched Relay Time | 1 - 99 Seconds |
| PIN Length | 2 - 6 Digits |
| Maximum Holding Force (Kg) | 250 |
| Warranty Years | 2 |
| Exit button type | Contactless |
| Callpoint supplied | Green callpoint included |
| Keypad (EZTAG3B) colour | Black |
| Magnetic lock (A1ML250) colour | Silver |
| Magnetic lock (A1ML250) dimensions (mm) | 48 x 250 x 27 |
| Magnetic lock (A1ML250) materials | Aluminium Alloy |
| Magnetic lock (A1ML250) mounting | Surface Only |
| Magnetic lock (A1ML250) operating voltage (V DC) | 12 & 24 |
| Magnetic lock (A1ML250) operating temperature (°C) | -20 to +50 |
| Keypad (EZTAG3B) supply voltage (V AC) | 12 - 24 |
| Keypad (EZTAG3B) operation type | Latched & Unlatched |
| Keypad (EZTAG3B) operating current (mA) | 110 |
| Keypad (EZTAG3B) maximum switchable load | 30V @ 4A |
| Keypad (EZTAG3B) lock outputs | 2 |
| Power supply (EVBPSBB) lock output | 12V DC @ 1.5A |
| Exit button (EVEXITC) finish | Stainless Steel |
| Exit button (EVEXITC) relay voltage | 12-28V @ 3A |
| Exit button (EVEXITC) contact type | Normally Open & Normally Closed |
| Call point (A1ECP) output relay rating | 3A @125-250V AC |
| Call point (A1ECP) weight (Kg) | 0.17 |
Dimensions
| Keypad (EZTAG3B) (mm) | 150 x 44 x 24 |
|---|---|
| Power supply (EVBPSBB) (mm) | 129 x 73 x 50 |
| Exit button (EVEXITC) (mm) | 86 x 86 x 29 |
| Call point (A1ECP) (mm) | 87.5 x 87.5 x 32 |
| Magnetic lock (A1ML250) (mm) | 48 x 250 x 27 |
