Aperta EZT3KM Single Door Internal Keypad Kit, Mushroom Exit Button & Green Callpoint, Silver

Visit Door Entry & Intercom Systems
Free Delivery
£ 188 76
(Incl. VAT)
2 Years Warranty
Single Door Internal Keypad Kit, Green, Silver
About this product

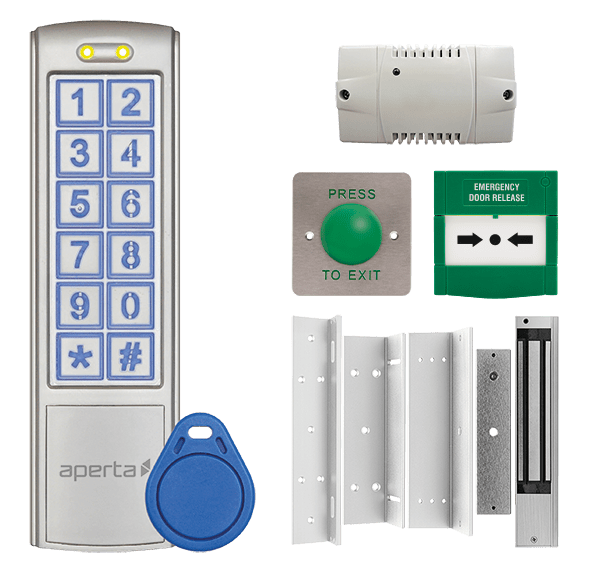

The Aperta EZT3KM, from ESP's Access Control range, is a single internal door proximity keypad kit with a mushroom exit button and an internal green callpoint. It combines the EZTAG3 proximity and keypad door entry unit, the EVBPSBB power supply unit, the EVEXITM push to exit mushroom release button, the A1ECP green internal emergency call point and the A1ML250 250kg magnetic lock.

Key features

  • EZTAG3 proximity and keypad unit: aluminium, backlit keys with blue LEDs, fob reader under 50 mm
  • Up to 1000 fobs/PINs in zone 1 and 10 in zone 2; PIN length 2 - 6 digits
  • Supplied with 10 proximity tags
  • EVBPSBB power supply unit: 100 - 230 V AC in, 12V DC @ 1.5A lock output
  • EVEXITM push to exit mushroom release button: clean contact output, normally open & normally closed
  • A1ECP green internal emergency call point
  • A1ML250 internal magnetic lock: 250kg holding force, with Z and L brackets

Frequently asked questions

What is in the EZT3KM kit?

1 x EZTAG3, 1 x EVBPSBB, 1 x EVEXITM, 1 x A1ECP and 1 x A1ML250, plus 10 proximity tags.

What is the keypad's Fob/PIN capacity?

Zone 1: 1000 Fob/PIN; zone 2: 10 Fob/PIN.

How strong is the lock?

The A1ML250 has a maximum holding force of 250kg.

How is the kit powered?

The EVBPSBB power supply unit takes 100 - 230 V AC and gives a 12V DC @ 1.5A lock output.

Which exit button is supplied?

The EVEXITM push to exit mushroom release button, with a clean contact output.

£ 188 76
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£188.76 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Fob Reader Operating Distance (mm)
<50
Status Indication
Red, Green, and Amber LEDs
Unlatched Relay Time
1 - 99 Seconds
PIN Length
2 - 6 Digits
Maximum Holding Force (Kg)
250
Warranty Years
2
Exit button type
Mushroom
Callpoint supplied
Green callpoint included
Magnetic lock (A1ML250) dimensions (mm)
48 x 250 x 27
Keypad and magnetic lock colour
Silver
Magnetic lock (A1ML250) materials
Aluminium Alloy
Magnetic lock (A1ML250) mounting
Surface Only
Keypad (EZTAG3) supply voltage (V AC)
12 - 24
Exit button (EVEXITM) output type
Clean Contact
Power supply (EVBPSBB) lock output
12V DC @ 1.5A
Magnetic lock (A1ML250) operating voltage (V DC)
12 & 24
Keypad (EZTAG3) operating current (mA)
110
Keypad (EZTAG3) maximum switchable load
30V @ 4A
Keypad (EZTAG3) lock outputs
2
Exit button (EVEXITM) maximum cable size (mm²)
2.5
Exit button (EVEXITM) contact type
Normally Open & Normally Closed
Exit button (EVEXITM) relay voltage
30V
Call point (A1ECP) output relay rating
3A @125-250V AC
Magnetic lock (A1ML250) operating temperature (°C)
-20 to +50
Exit button (EVEXITM) weight (Kg)
0.173
Keypad (EZTAG3) materials
Aluminium
Dimensions
Keypad (EZTAG3) (mm)
150 x 44 x 24
Power supply (EVBPSBB) (mm)
129 x 73 x 50
Exit button (EVEXITM) (mm)
87.5 x 87.5 x 35
Call point (A1ECP) (mm)
87.5 x 87.5 x 32
Magnetic lock (A1ML250) (mm)
48 x 250 x 27
Specifications
Dimensions

Specifications

Fob Reader Operating Distance (mm) <50
Status Indication Red, Green, and Amber LEDs
Unlatched Relay Time 1 - 99 Seconds
PIN Length 2 - 6 Digits
Maximum Holding Force (Kg) 250
Warranty Years 2
Exit button type Mushroom
Callpoint supplied Green callpoint included
Magnetic lock (A1ML250) dimensions (mm) 48 x 250 x 27
Keypad and magnetic lock colour Silver
Magnetic lock (A1ML250) materials Aluminium Alloy
Magnetic lock (A1ML250) mounting Surface Only
Keypad (EZTAG3) supply voltage (V AC) 12 - 24
Exit button (EVEXITM) output type Clean Contact
Power supply (EVBPSBB) lock output 12V DC @ 1.5A
Magnetic lock (A1ML250) operating voltage (V DC) 12 & 24
Keypad (EZTAG3) operating current (mA) 110
Keypad (EZTAG3) maximum switchable load 30V @ 4A
Keypad (EZTAG3) lock outputs 2
Exit button (EVEXITM) maximum cable size (mm²) 2.5
Exit button (EVEXITM) contact type Normally Open & Normally Closed
Exit button (EVEXITM) relay voltage 30V
Call point (A1ECP) output relay rating 3A @125-250V AC
Magnetic lock (A1ML250) operating temperature (°C) -20 to +50
Exit button (EVEXITM) weight (Kg) 0.173
Keypad (EZTAG3) materials Aluminium

Dimensions

Keypad (EZTAG3) (mm) 150 x 44 x 24
Power supply (EVBPSBB) (mm) 129 x 73 x 50
Exit button (EVEXITM) (mm) 87.5 x 87.5 x 35
Call point (A1ECP) (mm) 87.5 x 87.5 x 32
Magnetic lock (A1ML250) (mm) 48 x 250 x 27

Single Door Internal Keypad Kit, Green, Silver features

Aperta EZT3KM Single Door Internal Keypad Kit, Green

Aperta EZT3KM Single Door Internal Keypad Kit, Mushroom Exit Button & Green Callpoint, Silver

What it does

The EZT3KM is a single-door kit. The EZTAG3 unit reads proximity fobs at under 50 mm, has backlit keys with blue LEDs, red, green and amber status LEDs and a tamper facility, and holds up to 1000 fobs/PINs in zone 1 and 10 in zone 2, with PINs of 2 - 6 digits. 10 proximity tags are supplied.

The A1ML250 magnetic lock has a maximum holding force of 250kg, the EVEXITM mushroom button has a clean contact output, and the A1ECP is a green internal emergency call point.

Installation notes

The EZTAG3 runs at 12 - 24 V, draws 110 mA and has 2 lock outputs and latched & unlatched operation, with an unlatched relay time of 1 - 99 seconds and a maximum switchable load of 30V @ 4A. It is surface mounted.

The EVBPSBB power supply unit takes 100 - 230 V AC and provides a 12V DC @ 1.5A lock output. The A1ML250 lock works at 12 & 24 V DC, is surface mounted only and comes with Z and L brackets.

The EVEXITM button has a stainless steel fascia and an ABS button, a relay voltage of 30V and an IP20 rating; its mounting is surface & flush (requires UDTASMBSS). The A1ECP call point mounts surface or flush, with the backbox included.

Aperta EZT3KM Single Door Internal Keypad Kit, Green
ESP

Aperta EZT3KM Single Door Internal Keypad Kit, Mushroom Exit Button & Green Callpoint, Silver

£188.76

The Aperta EZT3KM, from ESP's Access Control range, is a single internal door proximity keypad kit with a mushroom exit button and an internal green callpoint. It combines the EZTAG3 proximity and keypad door entry unit, the EVBPSBB power supply unit, the EVEXITM push to exit mushroom release button, the A1ECP green internal emergency call point and the A1ML250 250kg magnetic lock.
