Aperta EZT3KXTB Single Door External Keypad Kit, IP55 Mushroom Exit Button, Black
About this product

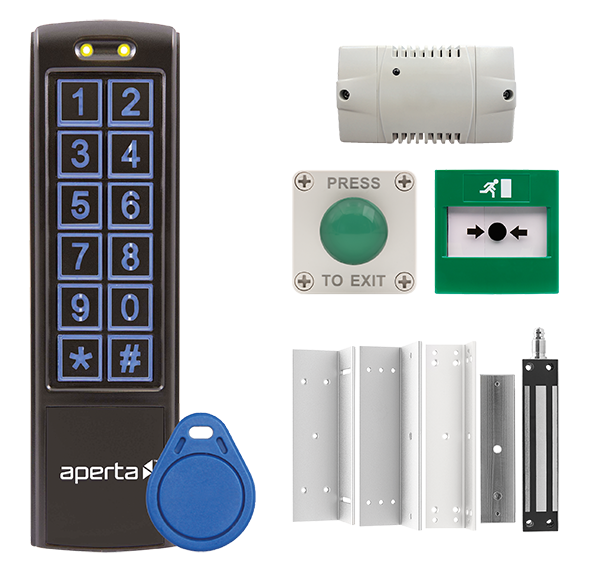

The Aperta EZT3KXTB, from ESP's Access Control range, is a single external door proximity keypad kit with an IP55 mushroom exit button, built around a black keypad. It contains the EZTAG3B proximity and keypad door entry unit, the EVBPSBB power supply unit, the EVEXITMIP55 push to exit mushroom release button, the EVEBGEXT2 IP67 surface green emergency resettable call point and the A1ML300XT external 300kg holding force magnetic lock.
Key features
- Black EZTAG3B proximity and keypad unit: aluminium, backlit keys with blue LEDs, fob read distance under 50 mm
- Up to 1000 fobs/PINs in zone 1 and 10 in zone 2; PIN length 2 - 6 digits
- Supplied with 10 proximity tags
- EVBPSBB power supply unit: 100 - 230 V AC in, 12V DC @ 1.5A lock output
- EVEXITMIP55 push to exit mushroom release button, IP55
- EVEBGEXT2 IP67 surface green emergency resettable call point
- A1ML300XT external magnetic lock: 300kg holding force, IP68, with Z and L brackets
Frequently asked questions
What is in the EZT3KXTB kit?
1 x EZTAG3B, 1 x EVBPSBB, 1 x EVEXITMIP55, 1 x EVEBGEXT2 and 1 x A1ML300XT, plus 10 proximity tags.
What colour is the keypad?
Black.
Which parts are external mountable?
The release button, the call point and the magnetic lock.
How strong is the lock?
The A1ML300XT has a maximum holding force of 300kg.
How is the kit powered?
The EVBPSBB power supply unit takes 100 - 230 V AC and gives a 12V DC @ 1.5A lock output.
-
Download
- EZT3KXTB Tech Sheet
Specifications
Dimensions
Specifications
| Fob Reader Operating Distance (mm) | <50 |
|---|---|
| Unlatched Relay Time | 1 - 99 Seconds |
| PIN Length | 2 - 6 Digits |
| Maximum Holding Force (Kg) | 300 |
| Warranty Years | 2 |
| Exit button type | IP55 Mushroom |
| Magnetic lock (A1ML300XT) dimensions (mm) | 47 x 220 x 28 |
| Magnetic lock (A1ML300XT) colour | Silver |
| Magnetic lock (A1ML300XT) materials | Aluminium Alloy |
| Exit button, call point and magnetic lock mounting | Surface Only |
| Keypad (EZTAG3B) supply voltage (V AC) | 12 - 24 |
| Exit button (EVEXITMIP55) and call point (EVEBGEXT2) output type | Clean Contact |
| Keypad (EZTAG3B) status indication | Red, Green, and Amber LEDs |
| Power supply (EVBPSBB) lock output | 12V DC @ 1.5A |
| Magnetic lock (A1ML300XT) operating voltage (V DC) | 12 & 24 |
| Keypad (EZTAG3B) operating current (mA) | 110 |
| Keypad (EZTAG3B) maximum switchable load | 30V @ 4A |
| Keypad (EZTAG3B) lock outputs | 2 |
| Exit button and call point maximum cable size (mm²) | 2.5 |
| Exit button (EVEXITMIP55) relay voltage | 30V |
| Call point (EVEBGEXT2) contact type | Double Pole Double Throw |
| Magnetic lock (A1ML300XT) operating temperature (°C) | -20 to +50 |
| Call point (EVEBGEXT2) output relay rating | 3A (12 to 24V DC & 125 to 250V AC) |
| Call point (EVEBGEXT2) weight (Kg) | 0.282 |
| Keypad (EZTAG3B) colour | Black |
| Keypad (EZTAG3B) materials | Aluminium |
| Kit contents | 1 x EZTAG3B, 1 x EVBPSBB, 1 x EVEXITMIP55, 1 x EVEBGEXT2, 1 x A1ML300XT |
| Exit button (EVEXITMIP55) ingress protection | IP55 |
| Call point (EVEBGEXT2) ingress protection | IP67 |
| Magnetic lock (A1ML300XT) ingress protection | IP68 |
Dimensions
| Keypad (EZTAG3B) (mm) | 150 x 44 x 24 |
|---|---|
| Power supply (EVBPSBB) (mm) | 129 x 73 x 50 |
| Exit button (EVEXITMIP55) (mm) | 85 x 80 x 85 |
| Call point (EVEBGEXT2) (mm) | 89 x 89 x 72 |
| Magnetic lock (A1ML300XT) (mm) | 47 x 220 x 28 |
