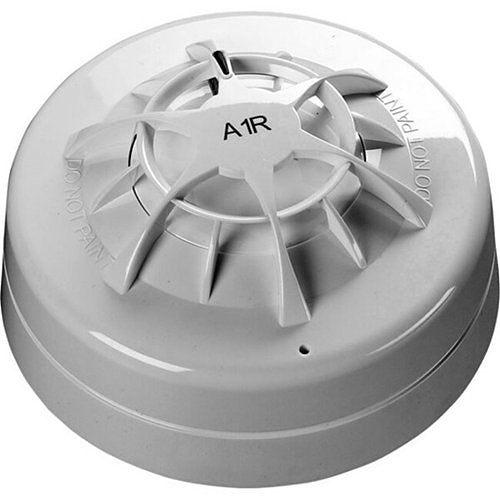

Apollo Fire ORB-HT-11001-APO heat detector, White
About this product
Apollo Fire ORB-HT-11001-APO is a heat detector from the Orbis range.
The Orbis Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
Key features
- Ideal in environments that are dirty or smoky under normal conditions
- Red flashing LED at StartUp confirms the device is operating.
- Can be used for applications where smoke detectors are unsuitable
- SensAlert®, yellow flashing LED indicates faulty operation
- FasTest® takes just four seconds to test and confirm detectors are functioning correctly
If you are matching this to an existing installation, work from the ORB-HT-11001-APO part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Apollo Fire |
|---|---|
| Manufacturer Part Number | ORB-HT-11001-APO |
| Product Series | Orbis |
| Product Type | Temperature Sensor |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Relative Humidity | 98% |
| Minimum Relative Humidity | 0 |
Physical characteristics
| Colour | White |
|---|---|
| Height | 36.00mm |
| Material | Polycarbonate |
| Weight | 70.00g |
| Width | 97.00mm |
Power description
| Input Voltage | 33V |
|---|
Miscellaneous
| Compatibility | Apollo Series 65 and previous ranges of conventional detector |
|---|---|
| Environmental certification | ISO |
| Environmental status | Yes |
Attributes
| Compatibility | Apollo Series 65 and previous ranges of conventional detector |
|---|---|
| Input Voltage | 33V |
| Weight | 70.00g |
| Maximum Relative Humidity | 98% |
Apollo Fire ORB-HT-11001-APO heat detector, White
