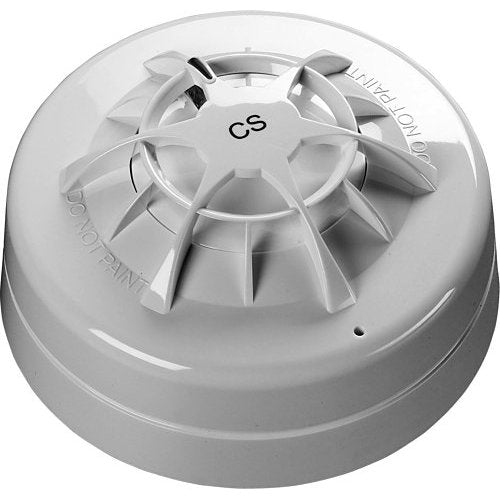

Apollo Fire ORB-HT-11018-APO heat detector, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Apollo Fire ORB-HT-11018-APO is a heat detector from the Orbis range.
The Orbis Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
Key features
- Can be used for applications where smoke detectors are unsuitable
- Ideal in environments that are dirty or smoky under normal conditions
- Red flashing LED at StartUp confirms the device is operating.
- SensAlert, yellow flashing LED indicates faulty operation
If you are matching this to an existing installation, work from the ORB-HT-11018-APO part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Apollo Fire |
|---|---|
| Manufacturer Part Number | ORB-HT-11018-APO |
| Product Series | Orbis |
| Product Type | Heat Detector |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Relative Humidity | 98% |
Certifications
| WEEE compliance | Compliant |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Height | 36.00mm |
| Material | Polycarbonate |
| Width | 97.00mm |
Power description
| Input Voltage | 33V |
|---|
Attributes
| Input Voltage | 33V |
|---|---|
| Maximum Relative Humidity | 98% |
