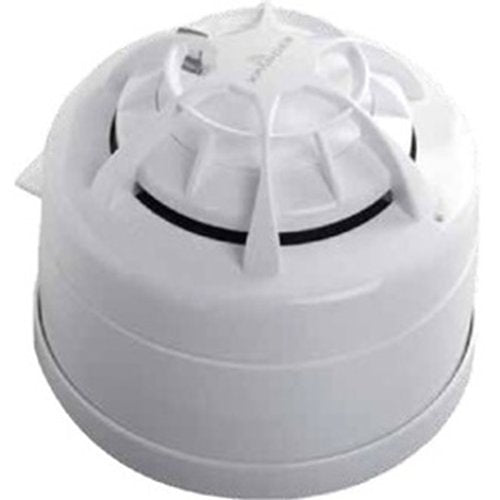

Apollo Fire XPA-CB-13032-APO heat detector, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Apollo Fire XPA-CB-13032-APO is a heat detector from the Xpander range.
Brand Information
XPander incorporates entirely new designs with respect to the wireless communication system. A Radio Interface is connected to the loop. It communicates with the control panel using the Apollo addressable two-wire power and communications system.
The interface communicates with the detection and alarm signalling devices by means of radio waves. The detectors are multistate in that they report normal, pre-alarm, fire or fault states to the radio base which transmits the information to the interface. The detectors incorporate drift compensation and report any compensation limit occurring.
The radio bases and signalling devices are addressable and use a pre-set analogue value to report via the XP95 or Discovery protocol. Apart from normal and fire the bases can send pre-set analogue values to indicate low battery, detector contaminated, detector tamper and low signal strength fault conditions. Brand Features
modern stylingloop-powered interface operating on 868MHzwireless addresses seen by control panel as normal addressesradio base with wireless circuitry and battery compartmentchamber designed to inhibit dirt penetration and thus reduce false alarmsautomatic drift compensation with DirtAlert™ warningalgorithms for transient alarm rejectionFasTest™ reduces time taken to test detectorsremote test facility3-5 years battery life
Communication
Radio CommunicationsFire detection systems are life-saving systems and must, therefore, be highly reliable in use. Radio communications have been developed to a point where high reliability can be guaranteed, provided that the rules for the design of radio systems and installation are carefully observed.Radio communication technology in the detection has matured to the point where a standard has been drawn up as part of the EN54 family of standards for components of a fire detection system. The standard is EN54 Part 25.FrequencyThe frequency used by XPander is 868MHz which is the harmonised European radio frequency.
Key features
- Multisensor technology reduces false alarms
- Increased sensitivity to flaming fires
- XPERT card addressing system
- Five year battery life using standard AA alkaline batteries
If you are matching this to an existing installation, work from the XPA-CB-13032-APO part number rather than the description.
Specifications
Technical information
Controls/indicators
Physical characteristics
Specifications
| Brand Name | Apollo Fire |
|---|---|
| Manufacturer Part Number | XPA-CB-13032-APO |
| Product Series | Xpander |
| Product Type | Multi Sensor Detector |
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Maximum Battery Life | 5-Year |
| Sensing Technology | Optical |
Controls/indicators
| Status Indicators | Yes |
|---|
Physical characteristics
| Colour | White |
|---|
Apollo Fire XPA-CB-13032-APO heat detector, White
