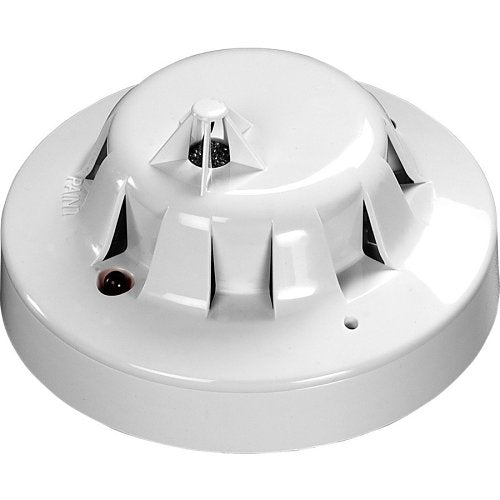

Apollo Fire 58000-305APO heat multi-sensor detector, White

£ 69 04
(Incl. VAT) RRP: £82.85
Save £13.81

About this product

Apollo Fire 58000-305APO is a heat multi-sensor detector from the Discovery range.

The Discovery CO/Heat Multisensor Detector contains a CO detection cell and a thermistor temperature sensor whose outputs are combined to give the final analogue value. The way in which the signals from the two sensors are combined depends on the response mode selected. The CO/Heat Multisensor detects the presence of carbon monoxide or heat or a combination of both.

The Multisensor construction is similar to that of a CO detector but uses a different lid in order to expose the thermistor to the surrounding air. The signals from the CO sensing cell and the thermistor are independent and represent the amount of CO or the temperature present in the vicinity of the detector. When the detector is used in heat only mode (Mode 5) it operates as an A1R rate-of-rise heat detector with a static threshold of 58°C.

Key features

  • Responds to smouldering and flaming fires
  • Less susceptible to false alarms caused by steam and dust
  • 5-Response modes

If you are matching this to an existing installation, work from the 58000-305APO part number rather than the description.

£ 69 04
RRP: £82.85 Save £13.81
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£69.04 Incl. VAT £82.85
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Apollo Fire
Manufacturer Part Number
58000-305APO
Product Series
Discovery
Product Type
Multi Sensor Detector
General information
Application/Usage
Indoor/Outdoor
Technical information
Detectable Gas
Carbon Monoxide (CO)
Detectable Medium
Gas
Maximum Coverage Area
50.0m2
Sensing Technology
Optical
Sensor Type
Gas Sensor
Controls/indicators
Status Indicators
Yes
Environmental conditions
Operating Relative Humidity (H-H)
15-95%
Operating Temperature (T-T)
50°C
Storage Temperature (T-T)
10-30°C
Physical characteristics
Colour
White
Height
54.00mm
Material
Nickel Plated Steel, Polycarbonate (PC)
Weight
105.00g
Power description
Input Voltage
28V DC
Product information
Diameter
100.10mm
Length
54.10mm
Miscellaneous
Compatibility
Discovery and CoreProtocol compatible, XP95
Environmental certification
CPR, LPCB, VdS
Environmental status
Yes
Attributes
Compatibility
Discovery and CoreProtocol compatible, XP95
Input Voltage
28V DC
Maximum Coverage Area
50.0m2
Weight
105.00g

Specifications

Brand Name Apollo Fire
Manufacturer Part Number 58000-305APO
Product Series Discovery
Product Type Multi Sensor Detector

General information

Application/Usage Indoor/Outdoor

Technical information

Detectable Gas Carbon Monoxide (CO)
Detectable Medium Gas
Maximum Coverage Area 50.0m2
Sensing Technology Optical
Sensor Type Gas Sensor

Controls/indicators

Status Indicators Yes

Environmental conditions

Operating Relative Humidity (H-H) 15-95%
Operating Temperature (T-T) 50°C
Storage Temperature (T-T) 10-30°C

Physical characteristics

Colour White
Height 54.00mm
Material Nickel Plated Steel, Polycarbonate (PC)
Weight 105.00g

Power description

Input Voltage 28V DC

Product information

Diameter 100.10mm
Length 54.10mm

Miscellaneous

Compatibility Discovery and CoreProtocol compatible, XP95
Environmental certification CPR, LPCB, VdS
Environmental status Yes

Attributes

Compatibility Discovery and CoreProtocol compatible, XP95
Input Voltage 28V DC
Maximum Coverage Area 50.0m2
Weight 105.00g

Apollo Fire 58000-305APO heat multi-sensor detector

Apollo Fire 58000-305APO heat multi-sensor detector, White

Who this is for

For the installer — this is the heat multi-sensor detector supplied under Apollo Fire part number 58000-305APO. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a heat multi-sensor detector made by Apollo Fire. The part number 58000-305APO is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this heat multi-sensor detector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact heat multi-sensor detector I have been quoted? Check the manufacturer part number 58000-305APO against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 58000-305APO answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Apollo Fire 58000-305APO heat multi-sensor detector
USE_EXISTING

Apollo Fire 58000-305APO heat multi-sensor detector, White

£69.04 £82.85

Apollo Fire 58000-305APO is a heat multi-sensor detector from the Discovery range.

The Discovery CO/Heat Multisensor Detector contains a CO detection cell and a thermistor temperature sensor whose outputs are combined to give the final analogue value. The way in which the signals from the two sensors are combined depends on the response mode selected. The CO/Heat Multisensor detects the presence of carbon monoxide or heat or a combination of both.

The Multisensor construction is similar to that of a CO detector but uses a different lid in order to expose the thermistor to the surrounding air. The signals from the CO sensing cell and the thermistor are independent and represent the amount of CO or the temperature present in the vicinity of the detector. When the detector is used in heat only mode (Mode 5) it operates as an A1R rate-of-rise heat detector with a static threshold of 58°C.

Key features

If you are matching this to an existing installation, work from the 58000-305APO part number rather than the description.
