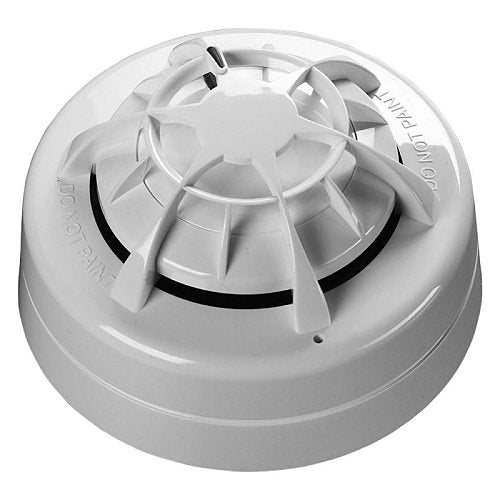

Apollo Fire ORB-OH-13003-APO heat multi-sensor detector, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Apollo Fire ORB-OH-13003-APO is a heat multi-sensor detector from the Orbis range.
Orbis multi-sensor smoke detectors are recognized as good detectors for general use but are additionally more sensitive to fast burning, flaming fires–including liquid fires–than optical detectors. They can be readily used instead of optical smoke detectors but should be used as the detector of choice for areas where the fire risk is likely to include heat at an early stage in the development of the fire. As with Orbis optical smoke detectors the increased reliability of detection is combined with high immunity to false alarms.
Operation: The multi-sensor smoke detector has two sensors, one for smoke, one for heat and the alarm decision is derived from either sensor or a combination of both. The multi-sensor is a development of the Orbis optical detector described in the previous chapter and goes further in its capabilities of fire detection.
The optical sensor is identical to the one in the Orbis optical detector. Its sensitivity is, however, influenced by a heat sensing element which makes the detector more responsive to fast-burning, flaming fires.
Key features
- Responds well to fast-burning, flaming fires
- Transient rejection algorithms reduce false alarms
- Automatic drift compensation with DirtAlert, a yellow flashing LED, to easily identify dirty detectors
-
Download
- ORB-OH-13003-APO — Product Manual
Specifications
Technical information
Controls/indicators
Environmental conditions
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Apollo Fire |
|---|---|
| Manufacturer Part Number | ORB-OH-13003-APO |
| Product Series | Orbis |
| Product Type | Sensor and Detector Accessory |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Sensing Technology | Optical |
| Sensor Type | Image Sensor |
Controls/indicators
| Status Indicators | LED |
|---|
Environmental conditions
| Operating Relative Humidity (H-H) | 98% |
|---|---|
| Operating Temperature (T-T) | -40-70°C |
| Storage Temperature (T-T) | -40-70°C |
Physical characteristics
| Colour | White |
|---|---|
| Height | 42.00mm |
| Material | Nickel Plated Steel, Polycarbonate (PC) |
| Weight | 80.00g |
Power description
| Input Voltage | 5-33V |
|---|
Product information
| Diameter | 97.00mm |
|---|
Attributes
| Input Voltage | 5-33V |
|---|---|
| Weight | 80.00g |
| Operating Relative Humidity (H-H) | 98% |
