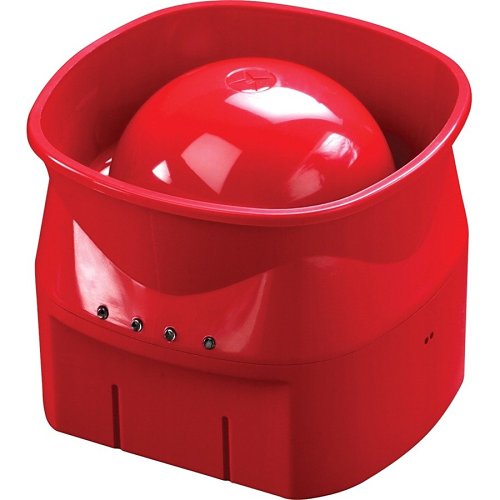

Apollo Fire 58000-010APO open-area voice sounder, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Apollo Fire 58000-010APO is an open-area voice sounder from the Discovery range.
Brand Information
Discovery® is a range of high-specification, analogue addressable fire detectors and alarm devices. Discovery detectors offer effective false alarm management by a combination of EN 54 approved operating modes and sophisticated algorithms. Drift compensation further reduces the likelihood of false alarms caused by a build-up of dust in the sensing chamber.
In addition to the familiar smoke and heat detectors, the Discovery range features two multisensor detectors. One is an optical/heat multisensor which can be used to protect against many types of fire risk. The other is a carbon monoxide/heat multisensor which protects against both smouldering fires and those generating heat.
Application
The Discovery Open-Area Voice Sounders are used to provide audible and visual warning of a fire condition and are controlled by the fire control panel by means of the Discovery protocol. This particular feature is only available when being controlled by the full Discovery or CoreProtocol, with the fire control panel programmed accordingly. Information on available features should be requested from the panel manufacturer.
The Discovery Open-Area Voice Sounders offer a choice of 15 evacuation tone/messages pairs available in each device. One of these tone/messages is selected during commissioning in order to suit local regulations or customs. A fire alarm test message is also available.
Whichever evacuation tone/message is selected there is a secondary tone/message which may be used for alerting or warning of a possible evacuation. Communication
Discovery, XP95 & CoreProtocol compatible
Maintenance & Service
Detectors should be maintained according to BS 5839-1 or other locally applicable code. Test equipment can be ordered from Apollo for testing smoke and heat detectors. Detectors should not be cleaned in the field except for careful removal of exterior dirt with a damp cloth.
EMC Directive 2014/30/EU
The product complies with the essential requirements of the EMC Directive 2014/30/EU, provided that it is used as described. Construction products regulation 305/2011
The product complies with the essential requirements of the Construction Products Regulation 305/2011. Product Information
Discovery Open-Area Voice Sounders comprise a sounder and a sounder visual indicator that have been designed to provide clear instructional messages through the Discovery protocol. They are loop powered wall mounted devices.
Key features
- Four pre-set message pairs
- Capable of up to 15 tone message pairs
- Low current and high volume
If you are matching this to an existing installation, work from the 58000-010APO part number rather than the description.
Specifications
General information
Environmental conditions
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Apollo Fire |
|---|---|
| Manufacturer Part Number | 58000-010APO |
| Product Series | Discovery |
| Product Type | Horn/Strobe |
General information
| Application/Usage | Evacuation, Fire Alarm |
|---|
Environmental conditions
| Sound Emission | 97dB |
|---|
Physical characteristics
| Colour | Red |
|---|
Miscellaneous
| Compatibility | Compatible Products: Discovery XP95 CoreProtocol |
|---|---|
| Environmental certification | CPR |
| Indoor or outdoor use | Outdoor |
Attributes
| Compatibility | Compatible Products: Discovery; XP95 ; CoreProtocol |
|---|
