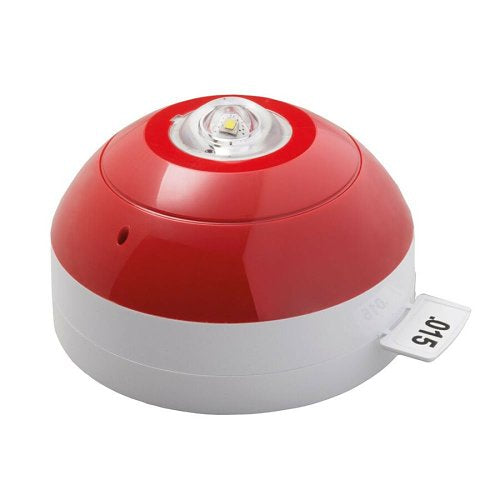

Apollo Fire 55000-742APO security alarm, Red
About this product
Apollo Fire 55000-742APO is a security alarm from the XP95 range.
The Loop Powered VAD is designed for indoor use. The Category C VAD is specifically designed for use on a ceiling and comes in two different coverage classes. The two EN 54-23 coverage classes are C-3-8.5 and C-3-15.
These devices are used to supplement sounders in areas which carry the risk that sounders will not be heard.
Key features
- Uses high intensity LED
- EN 54-23 Compliant Category C VAD
- Coverage C-3-8.5 and C-3-15
- Flash rate 0.5 Hz
- Fault signal if LED check failed
- Locking mechanism
- Wide angle of visibility
- Synchronised flash rates with the Apollo Protocol
Specifications
General information
Technical information
Controls/indicators
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Apollo Fire |
|---|---|
| Manufacturer Part Number | 55000-742APO |
| Product Series | XP95 |
| Product Type | Security Alarm |
General information
| Application/Usage | Indoor |
|---|
Technical information
| Alarm Type | Visual |
|---|---|
| Light Colour | White |
| Operating Range | -10-55°C |
Controls/indicators
| Status Indicators | LED |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Height | 50.00mm |
| Lens Colour | White |
| Weight | 105.00g |
Power description
| Input Voltage | 28V DC |
|---|
Product information
| Diameter | 100.00mm |
|---|
Miscellaneous
| Compatibility | Apollo Fire - XP95 Discovery system |
|---|---|
| Environmental certification | CPR, FG, LPCB, VdS |
| Indoor or outdoor use | Indoor |
Attributes
| Compatibility | Apollo Fire - XP95 Discovery system |
|---|---|
| Input Voltage | 28V DC |
| Weight | 105.00g |
Apollo Fire 55000-742APO security alarm, Red
