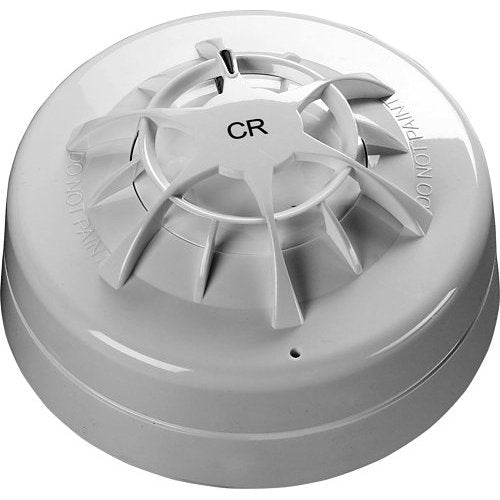

Apollo Fire ORB-HT-11005-APO temperature sensor, White

Apollo Fire ORB-HT-11005-APO is a temperature sensor.

Brand Information

Orbis is a range with modern styling and a mounting base that saves installation time. It is electrically compatible with Apollo Series 65 and previous ranges of conventional detector. Orbis is a demonstration of Apollo's commitment to the market for high quality conventional detectors for use in small to medium size installations.

In developing this range Apollo has put ease of installation and reliability in daily operation at the forefront of considerations. The attractive and compact design means that Orbis will blend in well with all architectural styles. Orbis is manufactured in Apollo's factory near Portsmouth, England

Orbis has been tested and approved to the following standards: EN54-7: 2000 + A1: 2002 optical smoke detector

EN 54-7: 2000 + A1: 2002 & CEA 4021: 2003-07

multisensor smoke detector EN 54-5: 2000 + A1: 2002 heat detector

Detectors have been declared as being compliant with the essential requirements of the EMC Directive 2004/108/EEC and the Construction Products Directive 89/106/EEC

Brand Features

TimeSaver Base® designed for fast installation

StartUp™ for fast commissioning

FasTest® reduces maintenance time

automatic drift compensation with DirtAlert® warning to easily identify dirty detectors

SensAlert® which indicates that the detector is not operating properly

wide voltage and operating temperature ranges

optical sensor designed for high reliability and reduced false alarm incidence

multisensor smoke detector for detecting fast-burning fires

flashing LED option

Operation

Orbis heat detectors have an open-web casing which allows air to flow freely across a thermistor which measures the air temperature every 2 seconds. A microprocessor stores the temperatures and compares them with pre-set values to determine whether a fixed upper limit-the alarm level-has been reached. In the case of rate-of-rise detectors the microprocessor uses algorithms to determine how fast the temperature is increasing.

Static heat detectors respond only when a fixed temperature has been reached. Rate-of-rise detectors also have a fixed upper limit but they also measure the rate of increase in temperature. A fire might thus be detected at an earlier stage than with a static detector so that a rate-of-rise detector is to be preferred to a static heat detector unless sharp increases of heat are part of the normal environment in the area protected by the heat detector.

Key features

• Can be used for applications where smoke detectors are unsuitable
• Ideal in environments that are dirty or smoky under normal conditions
• Red flashing LED at StartUp confirms the device is operating
• SensAlert, yellow flashing LED indicates faulty operation

If you are matching this to an existing installation, work from the ORB-HT-11005-APO part number rather than the description.
