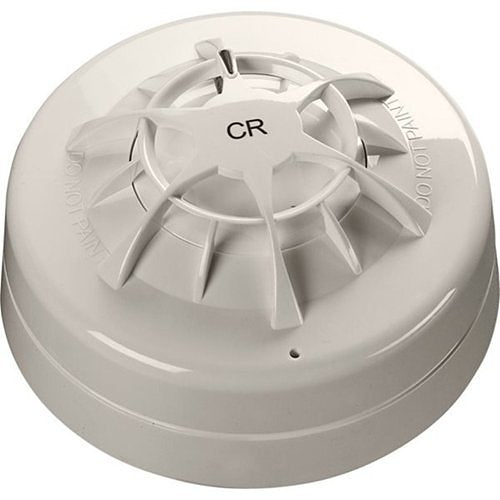

Apollo Fire ORB-HT-41005-MAR temperature sensor, White

Please note: this is a non-returnable item (excluding faulty goods)

Apollo Fire ORB-HT-41005-MAR is a temperature sensor.

Orbis Marine conventional fire detectors offer a wealth of features to save time, enhance reliability and reduce false alarms within the marine environment. These include drift compensation and DirtAlert®, a feature that warns Service Engineers via a flashing yellow LED that detectors need maintenance; and patented FasTest®, a procedure that takes just four seconds to test smoke detectors and confirm that they are functioning correctly. Brand Features

Approved for use in marine environments

Modern, low-profile design

TimeSaver® Base for fast installation

Transient rejection for false alarm reduction

High humidity tolerance at up to 98% RH

Wide operating temperature -40°C to +70°C

Operation

Orbis heat detectors have an open-web casing which allows air to flow freely across a thermistor which measures the air temperature every 2 seconds. A microprocessor stores the temperatures and compares them with pre-set values to determine whether a fixed upper limit - the alarm level - has been reached. In the case of rate-of-rise detectors the microprocessor uses algorithms to determine how fast the temperature is increasing.

Static heat detectors respond only when a fixed temperature has been reached. Rate-of-rise detectors also have a fixed upper limit but they also measure the rate of increase in temperature. A fire might thus be detected at an earlier stage than with a static detector so that a rate-of-rise detector is to be preferred to a static heat detector unless sharp increases of heat are part of the normal environment in the area protected by the heat detector.Application

Heat detectors have a wide range of response characteristics and the choice of the right type for a particular application may not always seem straightforward. It is helpful to understand the way that heat detectors are classified as explained earlier and to memorize a simple rule: use the most sensitive heat detector available consistent with avoiding false alarms. In the case of heat detectors it may be necessary to take an heuristic approach, ie, trial and error, until the best solution for a particular site has been found.

The flowchart (refer to datasheet PP2479) will assist in choosing the right class of heat detector. If the fire detection system is being designed to comply with BS 5839-1: 2002 heat detectors should be installed at heights of less than 12 meters with the exception of class A1 detectors, which can be installed at heights up to 13.5 meters. Environmental Characteristics

The environmental performance is similar to that of the Orbis optical smoke detector but it should be noted that heat detectors are designed to work at particular ambient temperatures (refer to Specialist Environments Product Catalgue PP2479). Product Information

The Orbis Marine Heat Detector uses a single thermistor to sense the air temperature around the detector. There are twelve heat detectors in the Orbis Marine range designed to suit a wide variety of operating conditions.

Key features

• Can be used for applications where smoke detectors are unsuitable
• Ideal for environments that are dirty or smoky under normal conditions
• Flashing LED option

If you are matching this to an existing installation, work from the ORB-HT-41005-MAR part number rather than the description.
