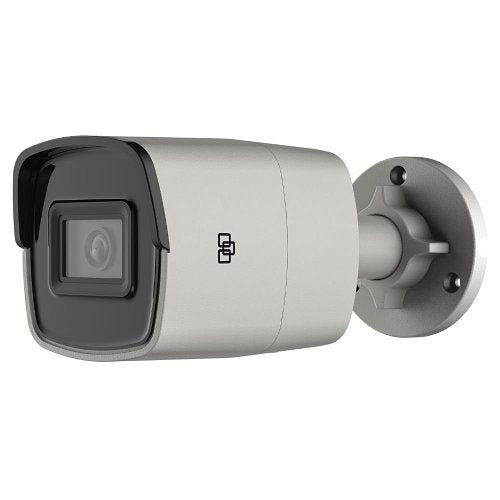

Aritech TVGP-M01-0801-BUL-G IP bullet camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Aritech TVGP-M01-0801-BUL-G is an IP bullet camera.
The TruVision M-series IP bullet cameras leverages the latest H.265+ video compression technology to bring state of-the-art, high-definition pictures to the mass video surveillance market. With video resolutions from 2MP to 4K, these IP cameras represent a flexible video surveillance device to meet any need. Equipped with advanced technology and signal processing capability, they effectively capture video under challenging conditions.
The cameras go above and beyond standard motion detection with enhanced alarm capabilities, including cross line detection, intrusion detection and face detection features. With its smart person/vehicle feature the camera can ignore irrelevant motion or VCA events which will automatically lead to less storage consumption and faster retrieval of relevant video events. TruVision cameras utilize H.265+ and/or H.264 compression technology with triple-streaming capability, making it easy to manage the camera's bandwidth usage.
Recording to a local MicroSD card (not included) protects data in the event of network disruptions.
Key features
- Maximum resolution 8MP/4K (3840 × 2160)
- Person/vehicle classification
- Video intelligence; intrusion detection, cross line detection, face detection
- Up to 40m IR illumination
- H.265+ Compression
- ONVIF Profile G, S, T open standards
- Edge recording up to 256 GB SDHC card
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Aritech |
|---|---|
| Manufacturer Part Number | TVGP-M01-0801-BUL-G |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 4.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 3840 x 2160 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 40.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP67 |
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 4.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Grey |
|---|---|
| Form Factor | Bullet |
| Height | 363.30mm |
| Weight | 490.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 70.00mm |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | 3D Digital Noise Reduction, Built-in IR LED, Cross Line Detection, Day/Night, Face Detection, Human Detection, Motion Detection, Vehicle Detection, Video Management System, Wide Dynamic Range |
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 490.00g |
