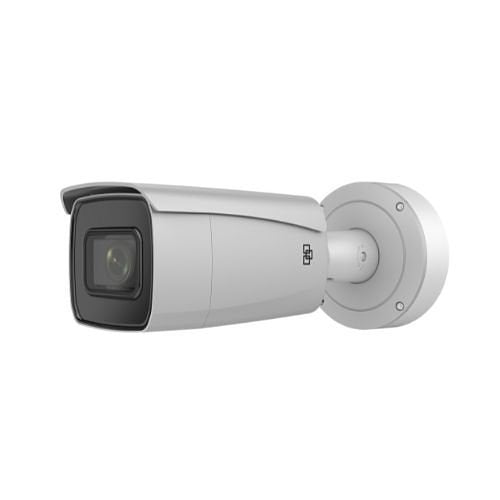

Aritech TVB-5715 network camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Aritech TVB-5715 is a network camera from the 7 range.
The TruVision Series 7 IP bullet cameras with smart event capabilities, available in 2, 4, 8 and 12MP resolution, deliver high-quality images thanks to their extreme low-light sensitivity and enhanced image processing. The extensive feature set makes these cameras the ideal choice for demanding security, surveillance and monitoring applications. The cameras support up to 10 configurable video streams, allowing users to optimise the camera’s remote live view capabilities while controlling bandwidth usage.
The motorised varifocal lens with P-iris technology enables users to remotely adjust zoom level and focus to obtain crisp images anytime, anywhere. In addition to compatibility with other TruVision products and third-party VMS software, the cameras also support NAS recording or local MicroSD card recording to protect data in the event of network disruptions. The enhanced embedded video intelligence capabilities exceed standard event detection, allowing operators to receive real-time event notifications and reduce time needed for post-incident investigation.
Key features
- Maximum resolution 3840 × 2160
- H.265, H.264 and MJPEG compression
- 10 independent configurable video streams
- Motorized zoom lens 2.8 to 12mm with auto-focus
- P-iris lens
- ONVIF Profiles S, G and T
- Rich video intelligence (VCA)
- Up to 50m IR illumination
- Up to 120dB Wide Dynamic Range
- Edge recording up to 256GB with optional SD card
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Aritech |
|---|---|
| Manufacturer Part Number | TVB-5715 |
| Product Series | 7 |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 3840 x 2160 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 50.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP67 |
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | <95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0007lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Grey |
|---|---|
| Form Factor | Bullet |
| Weight | 2.45kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 144.00mm |
|---|---|
| Length | 347.98mm |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | 3D Digital Noise Reduction, Built-in IR LED, Cross Line Detection, Day/Night, Face Detection, Human Detection, Motion Detection, Vehicle Detection, Video Management System, Wide Dynamic Range |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 2.45kg |
