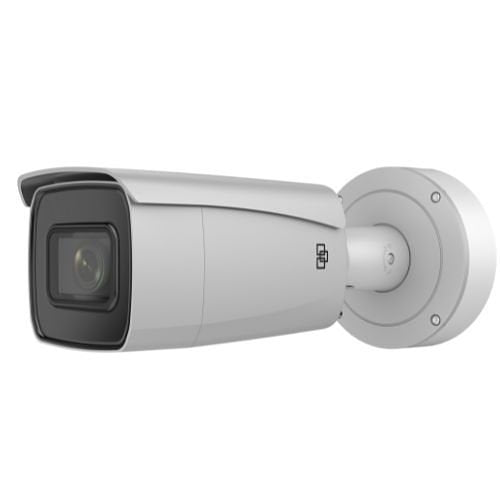

Aritech TVB-5717 network camera, 12MP
Free Delivery
£
1,171
21
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Aritech TVB-5717 is a network camera.
The TruVision Series 7 IP bullet cameras with smart event capabilities available in 2, 4, 8 and 12MP resolution deliver high-quality images thanks to their extreme low light sensitivity and enhanced image processing. The rich set of features make these cameras the ideal choice for demanding security, surveillance and monitoring applications.
Key features
- Maximum resolution 4000 x 3000
- H.265, H.264 and MJPEG compression
- 10 independent configurable video streams
- Motorized zoom lens 2.8 to 12 mm with auto-focus
- P-iris lens
- ONVIF Profiles S, G and T
- Rich video intelligence (VCA)
- Up to 50 m IR illumination
- Edge recording up to 256 GB with optional SD card
£
1,171
21
Price
Technical Details
Specifications
Brand Name
Aritech
Manufacturer Part Number
TVB-5717
Product Type
Network Camera
Technical information
Effective resolution
12MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Frame Rate
20fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
50.00m
Certifications
CE marking
Yes
Ingress protection
IP67
Display & graphics
Maximum video resolution
4000 x 3000
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
<95%
Exposure
Longest Shutter Speed
1 Second
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Lens Included
Yes
Maximum Focal Length
12.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Grey
Form Factor
Bullet
Weight
2450.00g
Power description
Input Voltage
12V DC
Product information
Diameter
144.00mm
Length
347.98mm
Storage
Storage Type
Network Attached Storage (NAS)
Video
Analog Video Signal Format
NTSC, PAL
Miscellaneous
Environmental status
Yes
Impact protection
IK10
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
2450.00g
Specifications
| Brand Name | Aritech |
|---|---|
| Manufacturer Part Number | TVB-5717 |
| Product Type | Network Camera |
Technical information
| Effective resolution | 12MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 50.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP67 |
Display & graphics
| Maximum video resolution | 4000 x 3000 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | <95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Grey |
|---|---|
| Form Factor | Bullet |
| Weight | 2450.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 144.00mm |
|---|---|
| Length | 347.98mm |
Storage
| Storage Type | Network Attached Storage (NAS) |
|---|
Video
| Analog Video Signal Format | NTSC, PAL |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 2450.00g |
