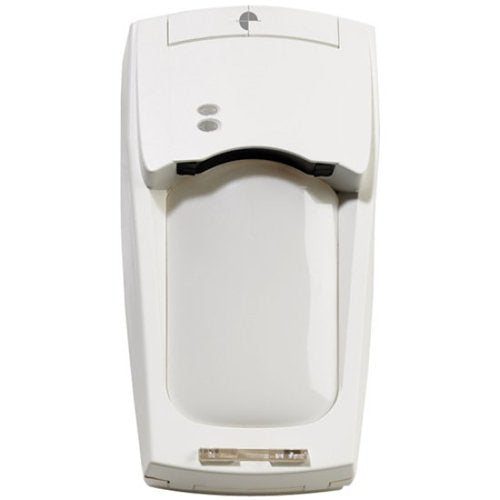

Aritech VE735AM PIR motion detector, White
About this product
Aritech VE735AM is a PIR motion detector.
The VE735AM is another Interlogix motion sensor using the V²E technology. This product uses the PIR part of VE735 together with multi-channel anti-masking. The V²E technology means the best possible PIR in the market with the highest ratio of detection to false alarm.
The optical part of the VE735AM is identical to the VE735. The step & glide focus mirror with multi curtains are features unique to UTC Fire & Security to provide maximum coverage density and ensure easy installation. With the “High Density Optic” (HDO) mirror, the VE700AM series will provide you with more and wider curtains (and therefore untraceable detection gaps).
The VE735AM is the only AM motion detector on the market that can offer both 90° wide-angle and long-range detection patterns in one product. It is known that the best solution to protect a motion sensor from being masked is active IR technology. UTC Fire & Security has always served the market with the best available technology to achieve the highest AM performance.
The VE735AM continues this trend by using the fourth generation of AM. VE735AM uses five IR transmitters and receivers working in different frequencies. This results in various AM signals for the sensor.
The AM circuit will not be triggered by the magnitude of modified light on each channel but with the relationship between the various signals. The multi-channels AM technology makes VE735AM capable of detecting any AM attempt, up to 30 cm from the detector. VE735AM is also immune to partial masking attempts, system malfunction insect presence, and white light jamming.
Key features
- High density “Step & Gliding Focus” Multi Curtain mirror
- “Vector Verified Enhanced” detection algorithm
- Selectable range with full undercrawl detection
- Selectable AM reporting and resetting
- 3 alarm sensitivities
- Tolerates wall angle deviation
- Complies with EN50131-2-2 Grade 2/3
- Pry-off and cover tamper
- Plug-in electronics
If you are matching this to an existing installation, work from the VE735AM part number rather than the description.
Specifications
General information
Technical information
Certifications
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Aritech |
|---|---|
| Manufacturer Part Number | VE735AM |
| Product Type | Motion Sensor |
General information
| Application/Usage | Indoor |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Motion Sensing Distance | 60m |
| Maximum Viewing Angle | 86° |
| Minimum Motion Sensing Distance | 20m |
| Passive Infrared Sensor (PIR) | Yes |
| Sensor Type | Infrared Sensor |
| Wireless Technology | Infrared |
Certifications
| Security Grade | Grade 3 |
|---|
Environmental conditions
| Operating Temperature (T-T) | -10-55°C |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 66.00mm |
| Height | 175.00mm |
| Weight | 275.00g |
| Width | 93.00mm |
Power description
| Input Voltage | 15V DC |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Miscellaneous
| Additional Information | Passive Infra Red motion sensorMulti channel Anti Masking for all masking attemptHigh density Step and Gliding Focus Multi Cutain mirrorPlug-in electronicsSealed opticsVector Verified Enhanced detection algorithmSelectable range with full u |
|---|---|
| Features | Anti-mask |
| Indoor or outdoor use | Indoor |
Attributes
| Input Voltage | 15V DC |
|---|---|
| Weight | 275.00g |
