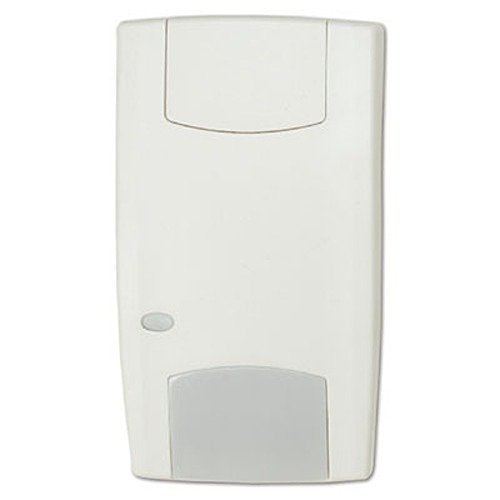

Aritech EV1012 volumetric motion detector, White

Visit Burglar & Intruder Alarms
£ 28 98
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Aritech EV1012 is a volumetric motion detector.

Aritech motion sensors have the most advanced and sophisticated mirror optics in the security industry. This unique optical mirror technology is a step and gliding focus which creates a continuous curtain resulting in a sensor that never loses track of the object. To increase detection coverage, the 1000 series sensors use the 3Brid orthogonal curtain design.

This is a horizontal mirror structure that creates curtains with vertical orientation which detect IR. This orthogonal invention is the key in adding curtains to the mirror without sacrificing signal strength nor increasing the size of the sensor.

Key features

  • Passive Infrared (PIR) Motion Sensor
  • 3Brid Step and Gliding Focus Curtain Mirror
  • Plug-in Electronics
  • Passive Infrared motion sensor
  • 3Brid Step & Gliding Focus Curtain mirror
  • Plug-in electronics
£ 28 98
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£28.98 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Aritech
Manufacturer Part Number
EV1012
Product Type
Motion Sensor
Technical information
Connectivity Technology
Wired
Maximum Motion Sensing Distance
12m
Maximum Viewing Angle
86°
Passive Infrared Sensor (PIR)
Yes
Sensor Type
Infrared Sensor
Wireless Technology
Infrared
Certifications
Security Grade
Grade 2
Environmental conditions
Operating Temperature (T-T)
-10-55°C
Physical characteristics
Colour
White
Depth
46.00mm
Height
60.00mm
Width
108.00mm
Power description
Input Voltage
15V DC
Product information
Mount Type
Ceiling Mount, Wall Mount
Miscellaneous
Additional Information
Undercrawl Protection Sensitivity: Normal / High Mounting Height: 1.8m to 3.0 m Current Consumption: 4.4 mA PIR Signal Processing: 5D
Features
5D Signal Processing, Cloak and umbrella immunity, Easy to install, Full under crawl detection, Grade 2, Passive Infra Red motion sensor, Plug-in electronics, Undercrawl protection, Walk Test
Indoor or outdoor use
Indoor
Attributes
Input Voltage
15V DC
Additional Information
Undercrawl Protection Sensitivity: Normal / High Mounting Height: 1.8m to 3.0 m Current Consumption: 4.4 mA PIR Signal Processing: 5D
Specifications
Technical information
Certifications
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Aritech
Manufacturer Part Number EV1012
Product Type Motion Sensor

Technical information

Connectivity Technology Wired
Maximum Motion Sensing Distance 12m
Maximum Viewing Angle 86°
Passive Infrared Sensor (PIR) Yes
Sensor Type Infrared Sensor
Wireless Technology Infrared

Certifications

Security Grade Grade 2

Environmental conditions

Operating Temperature (T-T) -10-55°C

Physical characteristics

Colour White
Depth 46.00mm
Height 60.00mm
Width 108.00mm

Power description

Input Voltage 15V DC

Product information

Mount Type Ceiling Mount, Wall Mount

Miscellaneous

Additional Information Undercrawl Protection Sensitivity: Normal / High Mounting Height: 1.8m to 3.0 m Current Consumption: 4.4 mA PIR Signal Processing: 5D
Features 5D Signal Processing, Cloak and umbrella immunity, Easy to install, Full under crawl detection, Grade 2, Passive Infra Red motion sensor, Plug-in electronics, Undercrawl protection, Walk Test
Indoor or outdoor use Indoor

Attributes

Input Voltage 15V DC
Additional Information Undercrawl Protection Sensitivity: Normal / High Mounting Height: 1.8m to 3.0 m Current Consumption: 4.4 mA PIR Signal Processing: 5D

Aritech EV1012 volumetric motion detector

Aritech EV1012 volumetric motion detector, White

Who this is for

For the installer — this is the volumetric motion detector supplied under Aritech part number EV1012. Specify it by that part number.

In plain English: this is a volumetric motion detector made by Aritech. The part number EV1012 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this volumetric motion detector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact volumetric motion detector I have been quoted? Check the manufacturer part number EV1012 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Aritech EV1012 volumetric motion detector
Aritech

Aritech EV1012 volumetric motion detector, White

£28.98

Please note: this is a non-returnable item (excluding faulty goods)

Aritech EV1012 is a volumetric motion detector.

Aritech motion sensors have the most advanced and sophisticated mirror optics in the security industry. This unique optical mirror technology is a step and gliding focus which creates a continuous curtain resulting in a sensor that never loses track of the object. To increase detection coverage, the 1000 series sensors use the 3Brid orthogonal curtain design.

This is a horizontal mirror structure that creates curtains with vertical orientation which detect IR. This orthogonal invention is the key in adding curtains to the mirror without sacrificing signal strength nor increasing the size of the sensor.
