Wireless Single-Input Transmitter DS-PM1-I1-WE for Hikvision AX-PRO - 868 MHz, Battery Powered
Wireless Power
Save £2.88

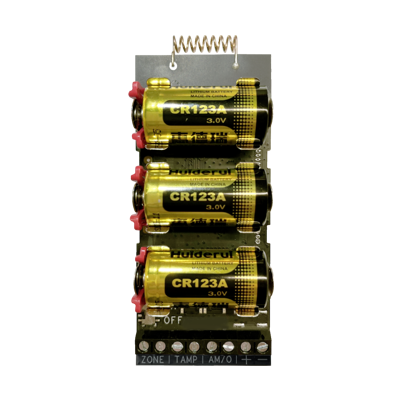

Hikvision AX PRO Series Single Input Transmitter (Wireless)
About this product
About this product
The AX PRO Series Single Input Transmitter offers a reliable and efficient solution for integrating third party wired detectors with the AX PRO alarm system.
- Compact Design: Easily fit into wired detectors, ensuring minimal space usage.
- 868MHz Wireless Communication: Provides a stable connection with a range of up to 1700m.
- Real-Time Status Display: Equipped with an LED display to show the operational status of the device.
- Tamper Input & PGM capability: Can be utilized as a zone input or alarm output for added versatility.
- External Power Capability: Offers a 3.3V output for powering external wired detectors.
- Removal Detection: Utilises an accelerometer to alert for device removal.
-
Download
- DS-PM1-I1-WE
Technical Details
Specifications
Manufacturer
Hikvision
Model
DS-PM1-I1-WE
Serial port
1
Hardware features
Alarm input 1 Alarm, 1 Tamper
Alarm output
1 PGM, AM/Output
Power supply
3 CR123
Battery life span
More than 5 years (report alarm 50 times per day)
RF frequency
868MHz
RF method
Two-way communication
RF distance
1700m
Display
Indicator
Installation method
Put inside Wireless Ready Detector
General
Dimension(WxHxD) 102*41*20mm
Weight
35g(Without Battery), 90g(With Battery)
Specifications
| Manufacturer | Hikvision |
|---|---|
| Model | DS-PM1-I1-WE |
| Serial port | 1 |
| Hardware features | Alarm input 1 Alarm, 1 Tamper |
| Alarm output | 1 PGM, AM/Output |
| Power supply | 3 CR123 |
| Battery life span | More than 5 years (report alarm 50 times per day) |
| RF frequency | 868MHz |
| RF method | Two-way communication |
| RF distance | 1700m |
| Display | Indicator |
| Installation method | Put inside Wireless Ready Detector |
| General | Dimension(WxHxD) 102*41*20mm |
| Weight | 35g(Without Battery), 90g(With Battery) |
Hikvision AX PRO Series Single Input Transmitter (Wireless) features
