Hikvision AX PRO Wireless Alarm Panel, 64-Zone, Wi-Fi & Cellular DS-PWA64-L-WE
Free Delivery
64 Zones
Backup Battery
Save £26.60
AX PRO Wireless Control Panel (64 Zones, TCP/IP, Wi-Fi, GPRS)
About this product
About this product

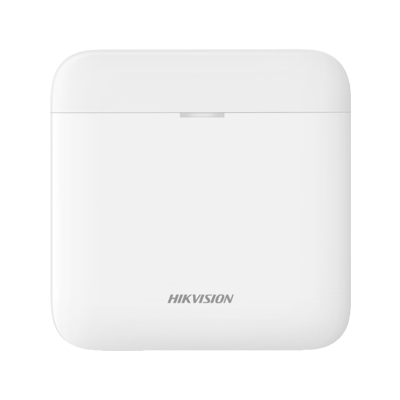

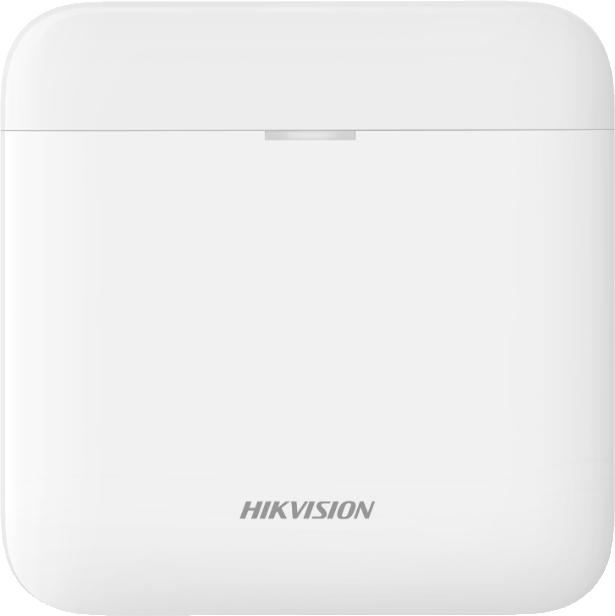

The Hikvision DS-PWA64-L-WE is an AX PRO 2-way wireless alarm control panel that connects over LAN, Wi-Fi and GPRS and uses the Tri-X wireless protocol with AES-128 encryption. It supports up to 64 wireless zones and carries EN50131 Grade 2 approval.
Key features
- LAN, on-board Wi-Fi (2.4G) and on-board GPRS, with a single SIM slot
- Tri-X wireless protocol at 868 MHz with long RF transmission distance; two-way with AES-128 encryption
- Up to 64 wireless zones, 32 wireless keyfobs, 32 tags, 4 wireless sounders and 2 wireless repeaters
- 16 areas; 1 installer, 1 admin and 30 users
- Built-in loudspeaker with voice prompt; PIRCAM supported
- 4520 mAh lithium backup battery with 12 hours standby
- ARC reporting by SIA DC09 (SIA level 2, Contact ID), ISUP and ISAPI (SDK); SMS notification and alarm voice call
- EN50131 Grade 2
Frequently asked questions
How many wireless zones does the DS-PWA64-L-WE support?
Up to 64 wireless zones.
How does the DS-PWA64-L-WE connect?
Through its LAN port, on-board Wi-Fi (2.4G) and on-board GPRS, with a single SIM slot. 3/4G is not on board this model.
How long does the backup battery last?
The built-in 4520 mAh lithium battery gives 12 hours standby.
What grade is the DS-PWA64-L-WE?
EN50131 Grade 2.
Can the DS-PWA64-L-WE report to an ARC?
Yes. It supports SIA DC09 (SIA level 2, Contact ID), ISUP and ISAPI (SDK).
How many users can the DS-PWA64-L-WE have?
1 installer, 1 admin and 30 users.
Technical Details
Specifications
Manufacturer
Hikvision
Colour
White
Operational Temperature
-10°C to 50°C
Certified Temperature
-10°C to +40°C
Weight
557.5 g
Power Supply
100-240 V, 50/60 Hz, 0.3 A
Battery Backup
4520 mAh
Protocol
SIA-DC09
Frequency
868 MHz
Wireless Zones
Up to 64
Wireless Keyfobs
32
Tags
32
Wireless Sounders
4
Wireless Repeaters
2
Areas
16
Communication
LAN, Wi-Fi (2.4G), GPRS
SIM Slot
Single
Battery Standby
12 hours
Housing
Plastic
Dimensions (W x H x D)
170.0 mm x 170.0 mm x 38.6 mm
Approvals
EN50131 Grade 2
Product-enhancements
Voice Prompt
Yes
Mobile Access
Yes
Push Notifications
Yes
Specifications
| Manufacturer | Hikvision |
|---|---|
| Colour | White |
| Operational Temperature | -10°C to 50°C |
| Certified Temperature | -10°C to +40°C |
| Weight | 557.5 g |
| Power Supply | 100-240 V, 50/60 Hz, 0.3 A |
| Battery Backup | 4520 mAh |
| Protocol | SIA-DC09 |
| Frequency | 868 MHz |
| Wireless Zones | Up to 64 |
| Wireless Keyfobs | 32 |
| Tags | 32 |
| Wireless Sounders | 4 |
| Wireless Repeaters | 2 |
| Areas | 16 |
| Communication | LAN, Wi-Fi (2.4G), GPRS |
| SIM Slot | Single |
| Battery Standby | 12 hours |
| Housing | Plastic |
| Dimensions (W x H x D) | 170.0 mm x 170.0 mm x 38.6 mm |
| Approvals | EN50131 Grade 2 |
Product-enhancements
| Voice Prompt | Yes |
|---|---|
| Mobile Access | Yes |
| Push Notifications | Yes |
AX PRO Wireless Control Panel (64 Zones, TCP/IP, Wi-Fi, GPRS) features
Hikvision AX PRO Wireless Alarm Panel, 64-Zone, Wi-Fi & Cellular DS-PWA64-L-WE
