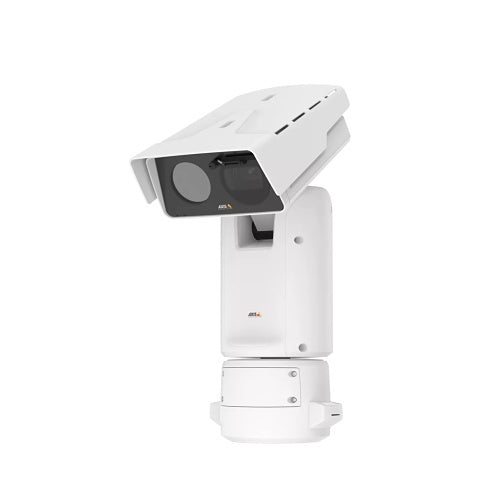

Axis Communications 03052-001 bispectral PTZ camera, 1920 x 1080
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 03052-001 is a bispectral PTZ camera.
High accuracy outdoor PTZ positioning Bispectral camera based on AXIS ARTPEC7 platform. Thermal sensor features a 640x480 resolution, 8.3 fps and 35 mm fixed thermal lens. Visual sensor have HDTV 1080p video resolution, 32x optical zoom, focus recall and is extremly light sensitive.
EIS (Electronic Image Stabilization) on both channels ensures focused and stable video. Integrated long-life silicone wiper for remote maintenance. The bispectral camera supports Zipstream, ONVIF, H.265 and local storage.
Included cybersecurity features are TPM-module, Axis secure boot and comes with signed FW. It includes Video motion detection and support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender and third-party applications. Responsive absolute positioning with high-speed and ultra-smooth pan and tilt capabilities.
Integrated SFP slot for long-distance fiber connection. IP66, NEMA 4X rated and UL listed. Ready for column-mount.
Powered by 56 V AC/DC from external power supply (not included).
Key features
- High accuracy outdoor PTZ positioning
- Bispectral camera with thermal and visual sensors
- 640x480 Thermal resolution, 8.3 fps, 35mm lens
- HDTV 1080p resolution, 32x optical zoom
- Electronic image stabilization on both channels
- Integrated long-life silicone wiper
- Supports Zipstream, ONVIF, H.265, local storage
- TPM-Module and secure boot as cybersecurity features
- Video motion detection and AXIS app support
- IP66, NEMA 4X rated, UL listed
-
Download
- 03052-001 — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Lens
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 03052-001 |
| Product Type | PTZ cameras; Thermal cameras |
Technical information
| Field of View | Horizontal, Vertical |
|---|---|
| Field of View (Horizontal) | 17.0° |
| Field of View (Vertical) | 12.80° |
| Lens Type | Varifocal |
| Maximum Aperture | f/4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.30mm |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 10-100% |
| Operating Temperature (T-T) | -40-60°C |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/66500 Second |
Lens
| Focal Length | 35-105mm, 35mm, 4.3-137.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 137.60mm |
| Minimum Aperture | f/1.4 |
Physical characteristics
| Colour | White |
|---|
Power description
| Input Voltage | 52-58V DC |
|---|
Product information
| Mount Type | Pole Mount, Wall Mount |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | CE, FCC, UL |
|---|---|
| Environmental status | Yes |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
| Package Contents | Camera, Connector kit, Installation guide |
Attributes
| Input Voltage | 52-58V DC |
|---|
