Axis Communications 03308-001 cable kit
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 03308-001 is a cable kit.

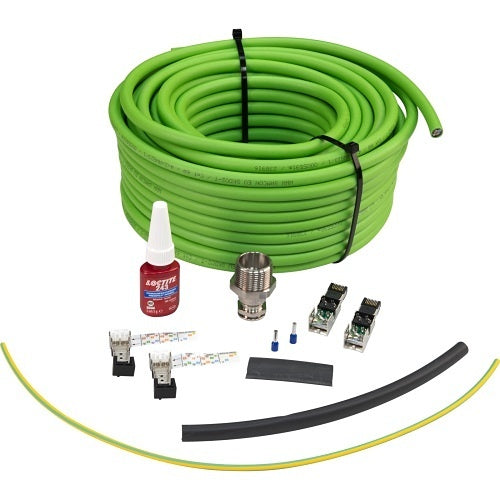

95 m network cable kit for explosion-protected cameras. Diameter 8.9 mm, 4 x 2 x 23AWG, -60°C to +80°C. Included accessories 5ml Loctite 243 thread locker, 2x CAT6 RJ45 industrial plug pro, 1x cable gland M25x1.5 (type ADE 1F2) certified for use in hazardous areas (ATEX, IECEx, INMETRO, EAC, PESO, KCs, CCC) II 2 G Ex db IIC, II 2 D Ex tb IIIC, IP66, IP67, IP68.
Key features
- 95m Network cable kit for explosion-protected cameras
- Diameter 8.9mm, 4x2x23AWG
- Temperature range of -60°C to +80°C
- Includes 5 ml Loctite 243 thread locker
- 2x CAT6 RJ45 Industrial plug pro included
- 1x Cable gland M25x1.5 certified for hazardous areas
- Complies with ATEX, IECEx, INMETRO, EAC, PESO, KCs, CCC
- Rated II 2 G Ex db IIC, II 2 D Ex tb IIIC
- IP66, IP67, IP68 protection
If you are matching this to an existing installation, work from the 03308-001 part number rather than the description.
Specifications
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 03308-001 |
