Axis Communications 02677-001 dome camera, 2MP
Free Delivery
£
567
03
(Incl. VAT)
About this product

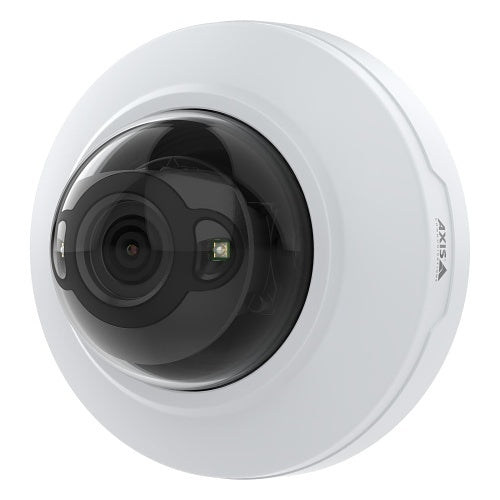

Axis Communications 02677-001 is a dome camera from the M42 range.
Featuring Lightfinder, WDR, and OptimizedIR, this compact and discreet dome delivers great image quality-day and night, even in low light. A deep learning processing unit (DLPU) lets you take advantage of intelligent analytics based on deep learning on the edge. Designed to blend into any environment, it can be repainted and offers a range of accessories for discreet monitoring.
Plus, it features an HDMI port and the flexibility to add audio and I/O connectivity using AXIS T61 Series. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Key features
- Network camera - Helps achieve high-quality video results
- Up to 1920 x 1080 video resolution
- Features RGB CMOS sensor
- 6.60 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.7 maximum aperture for productive capturing according to focal length and lighting conditions
- 1.8x optical zoom for desired image clarity and maximum capturing convenience
- Up to 20 m of night vision
- Full HD recording format for a lively video quality experience with maximum dependability
- Infrared night vision type efficiently detects infrared waves that are invisible to the naked eye
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
£
567
03
Price
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02677-001
Product Series
M42
Product Type
Fixed dome cameras
General information
Packaged Quantity
1
Supported Network Protocols
IPv6
Technical information
Aperture
f/1.7-2.6
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.7
Maximum Frame Rate
30fps
Minimum Focal Length
3.50mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2.0x
Video Formats
H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Main Profile, Motion JPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
CE marking
Yes
Ingress protection
IP42
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
45°C
Minimum Operating Temperature
0°C
Operating Humidity
85%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/25000 Second
Interfaces/ports
HDMI
Yes
Network (RJ-45)
Yes
Lens
Focal Length
3.5-6.6mm
Lens Included
Yes
Maximum Focal Length
6.60mm
Minimum Aperture
f/2.6
Memory
Memory Card Supported
Yes
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
119.40mm
Durability
Vandal Resistant
Form Factor
Dome
Height
71.10mm
Weight
366.00g
Width
119.40mm
Power description
Maximum Power Consumption
10.00W
Power over Ethernet (PoE)
Yes
Product information
Diameter
119.90mm
Mount Type
Ceiling Mount, Junction Box Mount, Pendant Mount, Recessed Mount, Surface Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP42, IEC/EN 62262 IK08
Environmental status
Yes
Features
Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Noise Reduction, Privacy Masking, PTZ, Wide Dynamic Range
Impact protection
IK08
Package Contents
1 x M4215-LV Dome Camera Varifocal 2 MP dome with IR and deep learning 1 x installation guide 1 x owner authentication key 1 x virtual client license for H.264/H.265
Attributes
Package Contents
1 x M4215-LV Dome Camera Varifocal 2 MP dome with IR and deep learning 1 x installation guide 1 x owner authentication key 1 x virtual client license for H.264/H.265
Weight
366.00g
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02677-001 |
| Product Series | M42 |
| Product Type | Fixed dome cameras |
General information
| Packaged Quantity | 1 |
|---|---|
| Supported Network Protocols | IPv6 |
Technical information
| Aperture | f/1.7-2.6 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.7 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 Main Profile, Motion JPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP42 |
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 45°C |
|---|---|
| Minimum Operating Temperature | 0°C |
| Operating Humidity | 85% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/25000 Second |
Interfaces/ports
| HDMI | Yes |
|---|---|
| Network (RJ-45) | Yes |
Lens
| Focal Length | 3.5-6.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.60mm |
| Minimum Aperture | f/2.6 |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 119.40mm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 71.10mm |
| Weight | 366.00g |
| Width | 119.40mm |
Power description
| Maximum Power Consumption | 10.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 119.90mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pendant Mount, Recessed Mount, Surface Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
|---|---|
| Environmental status | Yes |
| Features | Built-in IR LED, Day/Night, HTTPS Encryption, Human Detection, Ingress Protection, Motion Detection, Noise Reduction, Privacy Masking, PTZ, Wide Dynamic Range |
| Impact protection | IK08 |
| Package Contents | 1 x M4215-LV Dome Camera Varifocal 2 MP dome with IR and deep learning 1 x installation guide 1 x owner authentication key 1 x virtual client license for H.264/H.265 |
Attributes
| Package Contents | 1 x M4215-LV Dome Camera Varifocal 2 MP dome with IR and deep learning 1 x installation guide 1 x owner authentication key 1 x virtual client license for H.264/H.265 |
|---|---|
| Weight | 366.00g |
