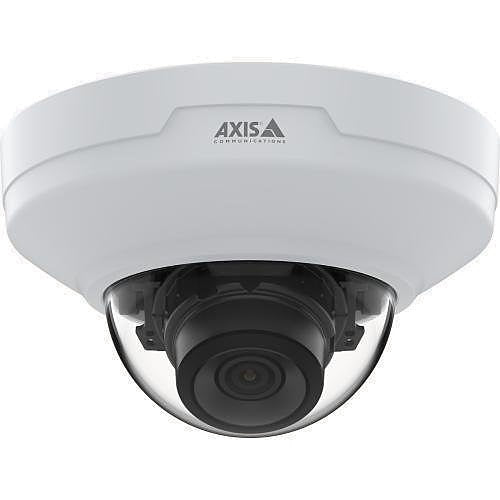

Axis Communications 02678-001 dome camera, 8MP
About this product
Axis Communications 02678-001 is a dome camera from the M42 range.
This discreet dome delivers great images in challenging light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.
Great images, every time
Ideal for indoor surveillance applications, AXIS M4218-V delivers great image quality in superior 4K. With avarifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed.
Thanks to WDR, it can handle difficult light conditions. Furthermore,Axis Edge Vault provides a hardware-based cyber security platform that guarantees the device's integrity and protects it from unauthorized access. Extended possibilities
AXIS M4218-V offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity usingAXIS T61 Series.
It offers advanced analytics based on deep learning on the edge to deliver valuablemetadatafacilitating efficient forensic search capabilities in live or recorded video. AndAXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment.
This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it's always safe and secure.
Key features
- Great image quality in superior 4K
- Varifocal lens with remote zoom and focus
- WDR for difficult light conditions
- Analytics with deep learning
- HDMI output for public viewing monitors
If you are matching this to an existing installation, work from the 02678-001 part number rather than the description.
-
Download
- 02678-001 — Product Manual
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02678-001 |
| Product Series | M42 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/1.7-2.6 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.7 |
| Maximum Frame Rate | 15fps |
| Minimum Focal Length | 3.50mm |
| Night Vision | Yes |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, Motion JPEG, Zipstream |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP42 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 40°C |
|---|---|
| Minimum Operating Temperature | 0°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/5 Second |
|---|---|
| Minimum Illumination | 0.0400lux |
| Shortest Shutter Speed | 1/71500 Second |
Interfaces/ports
| HDMI | Yes |
|---|---|
| Network (RJ-45) | Yes |
Lens
| Focal Length | 3.5-6.6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.60mm |
| Minimum Aperture | f/2.6 |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 71.00mm |
| Weight | 356.00g |
Power description
| Maximum Power Consumption | 5.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 120.00mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pendant Mount, Recessed Mount, Surface Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
|---|---|
| Environmental status | Yes |
| Features | 2D Noise Reduction, 3D Digital Noise Reduction, Day/Night, Face Detection, Multi-view Stream, Noise Reduction, Privacy Masking, Video Content Analytics, Video Management System, White Balance, Wide Dynamic Range |
| Impact protection | IK08 |
| Indoor or outdoor use | Indoor |
Attributes
| Package Contents | M4218-V Dome Camera Installation guide Owner authentication key; Virtual client license for H.264/H.265 |
|---|---|
| Weight | 356.00g |
Axis Communications 02678-001 dome camera, 8MP
