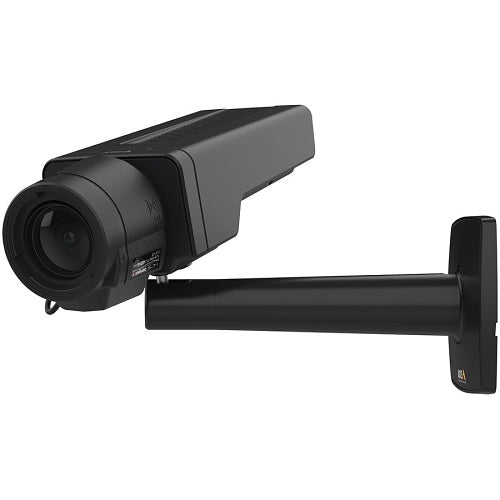

Axis Communications 02164-001 fixed camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 02164-001 is a fixed camera from the Q16 range.
With 4 MPresolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656 delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And AXIS Object Analytics offers highly nuanced object classification.
This high-performance box camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, built-in cybersecurity features, such as Axis Edge Vault, signed firmware and secure boot, and FIPS-certified TPM, prevent unauthorized access and safeguard your system.
Key features
- Exceptional images with 1/1.8” sensor
- Support for analytics with deep learning
- Built-in cybersecurity features
- Premium Axis Q-line camera functionality
- Remote zoom and focus
Specifications
General information
Technical information
Camera
Certifications
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02164-001 |
| Product Series | Q16 |
| Product Type | Fixed cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/1.5 |
|---|---|
| Built-in Microphone | Yes |
| Connectivity Technology | Wired |
| Effective resolution | 4MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | CS-Mount |
| Lens Type | Varifocal |
| Maximum Frame Rate | 60fps |
| Night Vision | Yes |
| Optical Zoom | 2.5x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| CE marking | Yes |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -20°C |
Exposure
| Minimum Illumination | 0.0100lux |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.9-10mm |
|---|---|
| Maximum Focal Length | 10.00mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Form Factor | Box Mount |
Power description
| Input Voltage | 10-28V DC |
|---|---|
| Maximum Power Consumption | 8.00W |
| Power over Ethernet (PoE) | Yes |
Product information
| Mount Type | Junction Box Mount, Tripod Mount |
|---|
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP4X |
|---|---|
| Features | Day/Night |
| Indoor or outdoor use | Indoor |
Attributes
| Input Voltage | 10-28V DC |
|---|
