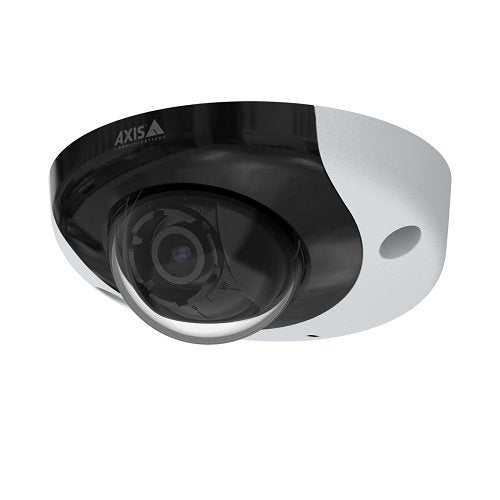

Axis Communications 01919-001 fixed dome camera, 2MP
About this product
Axis Communications 01919-001 is a fixed dome camera from the P39 range.
Specifically designed for onboard surveillance, AXIS P3935-LR complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring AXIS Lightfinder and AXIS Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. It includes built-in invisible IR LEDs (940 nm) for video surveillance in complete darkness.
Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera features a built-in microphone for audio surveillance and detection. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.
Key features
- Vandal-resistant, metal casing
- Complies with EN50155, EN45545, and NFPA 130
- Lightfinder and Forensic WDR
- Invisible IR LEDs, built-in microphone, and EIS
- Enhanced security features
If you are matching this to an existing installation, work from the 01919-001 part number rather than the description.
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 01919-001 |
| Product Series | P39 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/1.6 |
|---|---|
| Built-in Microphone | Yes |
| Connectivity Technology | Wired |
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66, IP67 |
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/33500 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 11.00cm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 49.40mm |
| Weight | 400.00g |
| Width | 11.00cm |
Power description
| Input Voltage | 12V DC |
|---|---|
| Maximum Power Consumption | 12.00W |
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 110.00mm |
|---|---|
| Mount Type | Pendant Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10 |
|---|---|
| Features | Audio Detection, Built-in IR LED, Built-in Microphone, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tampering Alarm |
| Impact protection | IK10 |
| Indoor or outdoor use | Indoor, Outdoor |
| Package Contents | P3935-LR Network Camera Installation Guide Windows Decoder 1-User License Drill Hole Template Lens Tool Resistorx L-Key |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | P3935-LR Network Camera Installation Guide Windows Decoder 1-User License Drill Hole Template Lens Tool Resistorx L-Key |
| Weight | 400.00g |
