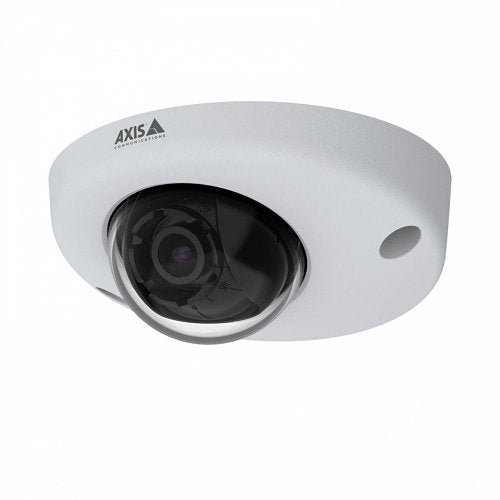

Axis Communications 01920-021 fixed dome camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 01920-021 is a fixed dome camera from the P39 range.
Specifically designed for onboard surveillance, AXIS P3925-R complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera offers extended capabilities for analytics.
Furthermore, enhanced security features prevent unauthorized access and safeguard your system.
Key features
- Vandal-resistant, metal casing
- Complies with EN50155, EN45545, and NFPA 130
- Lightfinder and Forensic WDR
- Electronic image stabilization
- Enhanced security features
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 01920-021 |
| Product Series | P39 |
| Product Type | Fixed dome cameras |
General information
| Package Type | Bulk |
|---|---|
| Packaged Quantity | 10 |
| Supported Network Protocols | IPv6 |
Technical information
| Aperture | f/1.6 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66, IP67 |
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
Exposure
| Minimum Illumination | 0.0100lux |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Maximum Focal Length | 2.80mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof, Waterproof |
| Form Factor | Dome |
Power description
| Maximum Power Consumption | 6.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10 |
|---|
Attributes
| Impact protection | IK10 |
|---|
Axis Communications 01920-021 fixed dome camera, 2MP
