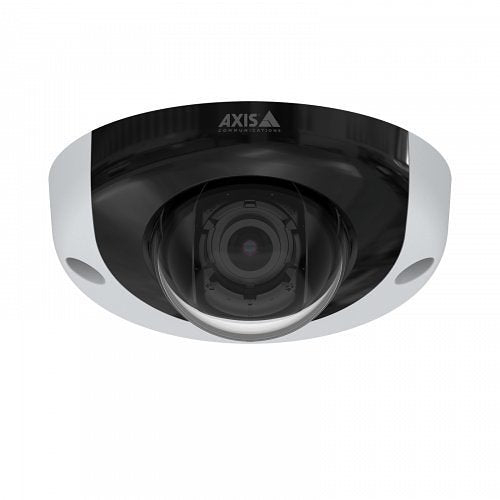

Axis Communications 01932-021 fixed dome camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 01932-021 is a fixed dome camera from the P39 range.
AXIS P3935-LR is specially designed for surveillance onboard vehicles and rolling stock such as trains, buses, and emergency vehicles. This robust, vandal-resistant camera offers improved imaging, IR and microphone, enhanced security features, and extended capabilities for analytics.
Key features
- Vandal-resistant, metal casing
- Complies with EN50155, EN45545, and NFPA 130
- Lightfinder and Forensic WDR
- Invisible IR LEDs, built-in microphone, and EIS
- Enhanced security features
If you are matching this to an existing installation, work from the 01932-021 part number rather than the description.
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 01932-021 |
| Product Series | P39 |
| Product Type | Fixed dome cameras |
General information
| Packaged Quantity | 10 |
|---|---|
| Supported Network Protocols | IPv6 |
Technical information
| Aperture | f/1.6 |
|---|---|
| Built-in Microphone | Yes |
| Connectivity Technology | Wired |
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66, IP67 |
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/33500 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 11.00cm |
| Durability | Corrosion Resistant, Dust Resistant, Impact Resistant, Vandal Resistant, Water Resistant |
| Form Factor | Dome |
| Height | 49.40mm |
| Weight | 410.00g |
| Width | 11.00cm |
Power description
| Maximum Power Consumption | 12.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 110.00mm |
|---|---|
| Mount Type | Pendant Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | EN 50155 Class OT2/ST2 (2021), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10 |
|---|---|
| Features | Active Tampering Alarm, Audio Detection, Built-in Infrared Illuminator, Built-in IR LED, Built-in Microphone, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Microphone In, Motion Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Shock Detection, White Balance, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Package Contents | 10 x P3935-LR Network Camera; Installation Guide; Windows decoder 1-user License; Drill Hole Template; Lens Tool; Resistorx L-Key |
|---|---|
| Weight | 410.00g |
