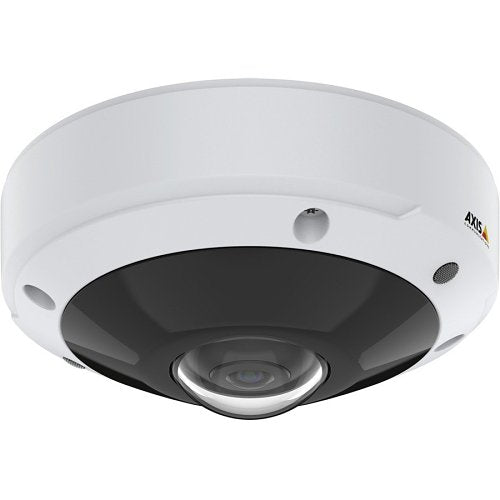

Axis Communications 02018-001 fixed dome camera, 6MP
About this product
Axis Communications 02018-001 is a fixed dome camera from the M30 range.
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera.
It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
Key features
- Complete 180° and 360° overview
- Lightfinder, Forensic WDR, and OptimizedIR
- Digital PTZ and dewarped views
- Built-in microphones
- Enhanced security features
If you are matching this to an existing installation, work from the 02018-001 part number rather than the description.
Specifications
General information
Technical information
Camera
Certifications
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02018-001 |
| Product Series | M30 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/2.0 |
|---|---|
| Built-in Microphone | Yes |
| Connectivity Technology | Wired |
| Effective resolution | 6MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 1.56mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66 |
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/16000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 1.56mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 1.56mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 14.90cm |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 66.00mm |
| Weight | 700.00g |
| Width | 14.90cm |
Power description
| Maximum Power Consumption | 12.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 149.00mm |
|---|---|
| Mount Type | Ceiling Mount, Conduit Box Mount, Corner Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
|---|---|
| Features | Audio Detection, Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Video Management System, Wide Dynamic Range |
| Impact protection | IK08 |
| Indoor or outdoor use | Outdoor |
| Package Contents | M3077-PLVE Network Camera Installation Guide Windows Decoder 1-user license Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 bit , Mounting Bracket Cable Hole Lid View Protector |
Attributes
| Package Contents | M3077-PLVE Network Camera Installation Guide Windows Decoder 1-user license Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 bit , Mounting Bracket Cable Hole Lid View Protector |
|---|---|
| Weight | 700.00g |
Axis Communications 02018-001 fixed dome camera, 6MP
