Axis Communications 02060-001 fixed dome camera, 13MP
About this product

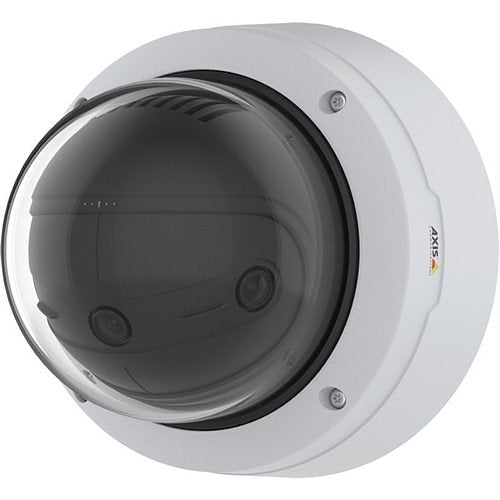

Axis Communications 02060-001 is a fixed dome camera from the P38 range.
AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it’s also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount.
Featuring edge-to-edge technology, it’s easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.
Key features
- 13MP multisensor with seamless stitching
- 180° horizontal, 90° vertical coverage
- Seamless pan/tilt/roll
- AXIS Edge Vault
- Built-in cybersecurity features
Specifications
General information
Technical information
Camera
Certifications
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02060-001 |
| Product Series | P38 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/2.0 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 13MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.20mm |
| Night Vision | Yes |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Minimum Illumination | 0.0500lux |
| Shortest Shutter Speed | 1/91000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.2mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.20mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 170.00mm |
| Weight | 2.20kg |
Power description
| Maximum Power Consumption | 18.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 195.00mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
|---|---|
| Features | Active Tampering Alarm, Audio Detection, Auto Gain Control, Built-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Noise Reduction, Password Protection, Privacy Masking, Removable IR Cut-off Filter, SD Card Local Storage, White Balance, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Weight | 2.20kg |
