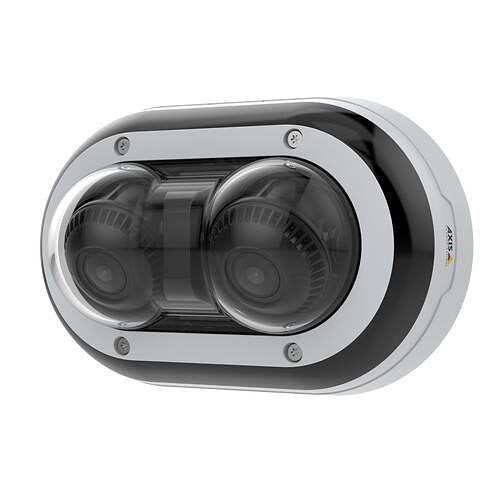

Axis Communications 02415-001 fixed dome camera, 2MP
About this product
Axis Communications 02415-001 is a fixed dome camera from the P47 range.
AXIS P4705-PLVE includes 360° IR illumination with individually controllable LEDs so you’ll enjoy clear images even in low light or complete darkness as well as undistorted colors during the day.
Key features
- 2*2MP multidirectional camera, with one IP address
- Support for analytics with deep learning on both sensors
- 360° IR illumination
- 2.5x zoom
- Axis Lightfinder and Forensic WDR
If you are matching this to an existing installation, work from the 02415-001 part number rather than the description.
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02415-001 |
| Product Series | P47 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/1.9-3.24 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.9 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3.30mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 2.5x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 15.00m |
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1.5 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/20000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.26-8.12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 8.12mm |
| Minimum Aperture | f/3.2 |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Panoramic |
| Height | 88.00mm |
| Weight | 975.00g |
| Width | 133.00mm |
Power description
| Maximum Power Consumption | 17.00W |
|---|---|
| Power over Ethernet (PoE) | Yes |
Product information
| Length | 208.00mm |
|---|---|
| Mount Type | Conduit Box Mount, Gang Box Mount, Junction Box Mount, Tripod Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
|---|---|
| Features | Day/Night, HTTPS Encryption, Human Detection, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Vehicle Detection, Video Management System, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Weight | 975.00g |
