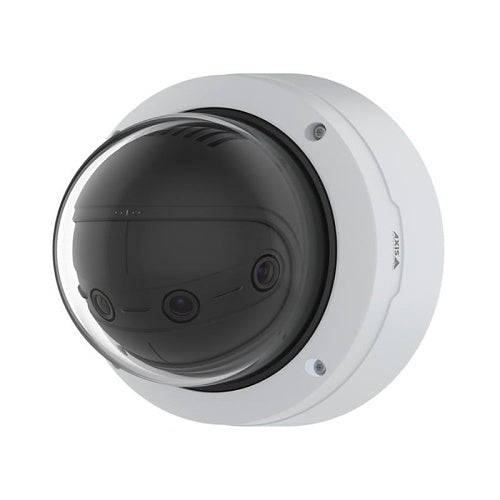

Axis Communications 02450-001 fixed dome camera, 7MP
About this product
Axis Communications 02450-001 is a fixed dome camera from the P38 range.
This 7 MP multisensor camera offers a single smooth and cohesive video stream with 180° panoramic coverage and captures high resolution images with incredible details up to 30 fps. Thanks to horizon straightening, it ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.
With seamless stitching across all 4 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitch in the center.
Key features
- 7MP multisensor camera with one IP address
- 180° horizontal, 90° vertical coverage
- Seamlessly stitched realistic images
- Support for advanced analytics
- Horizon straightening
If you are matching this to an existing installation, work from the 02450-001 part number rather than the description.
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02450-001 |
| Product Series | P38 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/2.0 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 7MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.30mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67 |
|---|
Display & graphics
| Number of Sensors | 4 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 100% |
Exposure
| Longest Shutter Speed | 1.5 Second |
|---|---|
| Minimum Illumination | 0.0500lux |
| Shortest Shutter Speed | 1/31500 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.3mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 3.30mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Height | 169.00mm |
| Weight | 2.30kg |
Power description
| Input Voltage | 12V DC |
|---|---|
| Maximum Power Consumption | 18.00W |
| Power over Ethernet (PoE) | Yes |
Product information
| Diameter | 195.00mm |
|---|---|
| Mount Type | Ceiling Mount, Conduit Box Mount, Junction Box Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 1280 x 720 |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
|---|---|
| Features | 2D Noise Reduction, 3D Noise Reduction, Audio Detection, Auto Gain Control, Motion Detection, Multi-view Stream, Noise Detection, PTZ, Tampering Alarm, Wide Dynamic Range |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 2.30kg |
