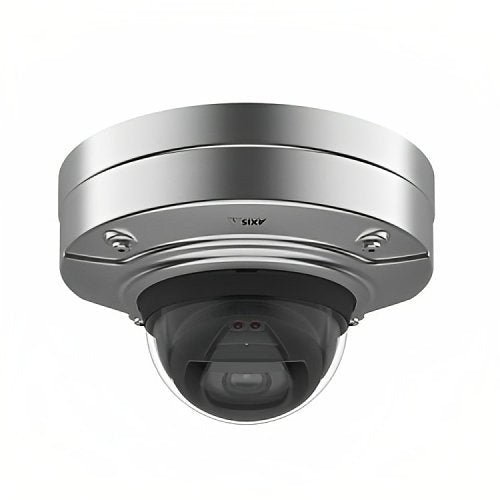

Axis Communications 02463-001 fixed dome camera, 8MP
About this product
Axis Communications 02463-001 is a fixed dome camera from the Q35 range.
Enclosed in marine-grade stainless steel (SS 316L), DNV-certified casing, this robust camera is resistant to the corrosive effects of sea water and cleaning chemicals. Plus, it’s protected against redirection, defocusing, and impacts and can withstand wide temperatures ranges. It offers outstanding image quality in superior 4K resolution under any light conditions.
Featuring a deep learning processing unit (DLPU), it supports advanced analytics based on deep learning on the edge. And, thanks to AXIS Object Analytics, it can detect and classify people, and different types of vehicles—all tailored to specific needs. Furthermore, built-in cybersecurity features help safeguard your system.
Key features
- Ideal for corrosive and harsh conditions
- Marine-grade stainless steel casing
- Outstanding image quality in 4K
- Support for analytics with deep learning
- Built-in cybersecurity features
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02463-001 |
| Product Series | Q35 |
| Product Type | Fixed dome cameras |
General information
| Supported Network Protocols | IPv6 |
|---|
Technical information
| Aperture | f/1.6-2.9 |
|---|---|
| Connectivity Technology | Wired |
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 6.20mm |
| Night Vision | Yes |
| Optical Zoom | 2.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP6K9K |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -50°C |
Exposure
| Minimum Illumination | 0.0000lux |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6.2-12.9mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.90mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Durability | Vandal Resistant |
| Form Factor | Dome |
Power description
| Power over Ethernet (PoE) | Yes |
|---|
Product information
| Mount Type | Conduit Box Mount, Junction Box Mount |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 60529 IP68, IEC/EN 60529 IP69, IEC/EN 62262 IK11, ISO 20653 IP6K9K, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
