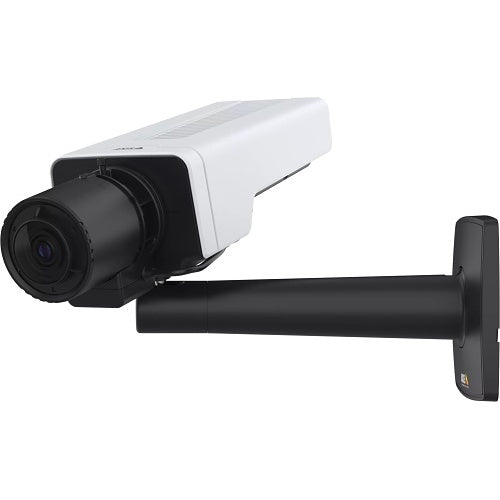

Axis Communications 02735-001 IP box camera, 5MP
Free Delivery
£
1,014
98
(Incl. VAT)
About this product
Axis Communications 02735-001 is an IP box camera from the P13 range.
AXIS P1387 delivers excellent image quality in 5 MP. Lightfinder 2.0 and Forensic WDR offer true colors and great detail in challenging light or near darkness. Electronic image stabilization ensures stable images despite vibration.
And scene profiles can be automatically optimized to suit specific scenarios. PoE and redundant DC power safeguard data in the event of a power outage. With a DLPU, you can run advanced features and powerful analytics on the edge.
Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access. Furthermore, it offers an exchangeable lens and is also designed for use outdoors in a housing.
Key features
- Network camera - Helps achieve high-quality video results
- 13mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- 4.6x optical zoom ensures maximum surveillance productivity without compromising quality
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- Day/Night feature for maximum productivity with added dependability
- Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
£
1,014
98
Price
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02735-001
Product Series
P13
Product Type
Fixed cameras
General information
Package Type
Box
Supported Network Protocols
IPv6
Technical information
Aperture
f/1.4
Built-in Microphone
Yes
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Horizontal, Vertical
Lens Mount Type
CS-Mount
Lens Type
Varifocal
Maximum Aperture
f/1.4
Maximum Frame Rate
60fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
4.5x
Video Formats
H.264 / AVC, H.265 / HEVC, Motion JPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
85%
Exposure
Longest Shutter Speed
2 Second
Minimum Illumination
0.0200lux
Shortest Shutter Speed
1/66500 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-13mm
Lens Included
Yes
Maximum Focal Length
13.00mm
Memory
Memory Card Supported
Yes
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Black
Form Factor
Box
Power description
Input Voltage
10-28V DC
Maximum Power Consumption
12.00W
Power over Ethernet (PoE)
Yes
Product information
Mount Type
Junction Box Mount
Storage
Storage Type
SD Card
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78
Environmental status
Yes
Features
Day/Night
Indoor or outdoor use
Indoor
Package Contents
AXIS TQ1903-E Swivel Joint AXIS TQ1917 Adapter M25x1.5-3/4 NPT AXIS TQ1924-E Washer Nozzle Camera Connector kit Declaration of Conformity H4 bit Installation guide , Installation manual IM001 Owner authentication key
Attributes
Input Voltage
10-28V DC
Package Contents
AXIS TQ1903-E Swivel Joint AXIS TQ1917 Adapter M25x1.5-3/4 NPT AXIS TQ1924-E Washer Nozzle Camera Connector kit Declaration of Conformity H4 bit Installation guide , Installation manual IM001 Owner authentication key
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02735-001 |
| Product Series | P13 |
| Product Type | Fixed cameras |
General information
| Package Type | Box |
|---|---|
| Supported Network Protocols | IPv6 |
Technical information
| Aperture | f/1.4 |
|---|---|
| Built-in Microphone | Yes |
| Connectivity Technology | Wired |
| Effective resolution | 5MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | CS-Mount |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 4.5x |
| Video Formats | H.264 / AVC, H.265 / HEVC, Motion JPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 2592 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 85% |
Exposure
| Longest Shutter Speed | 2 Second |
|---|---|
| Minimum Illumination | 0.0200lux |
| Shortest Shutter Speed | 1/66500 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-13mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 13.00mm |
Memory
| Memory Card Supported | Yes |
|---|
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Form Factor | Box |
Power description
| Input Voltage | 10-28V DC |
|---|---|
| Maximum Power Consumption | 12.00W |
| Power over Ethernet (PoE) | Yes |
Product information
| Mount Type | Junction Box Mount |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78 |
|---|---|
| Environmental status | Yes |
| Features | Day/Night |
| Indoor or outdoor use | Indoor |
| Package Contents | AXIS TQ1903-E Swivel Joint AXIS TQ1917 Adapter M25x1.5-3/4 NPT AXIS TQ1924-E Washer Nozzle Camera Connector kit Declaration of Conformity H4 bit Installation guide , Installation manual IM001 Owner authentication key |
Attributes
| Input Voltage | 10-28V DC |
|---|---|
| Package Contents | AXIS TQ1903-E Swivel Joint AXIS TQ1917 Adapter M25x1.5-3/4 NPT AXIS TQ1924-E Washer Nozzle Camera Connector kit Declaration of Conformity H4 bit Installation guide , Installation manual IM001 Owner authentication key |
