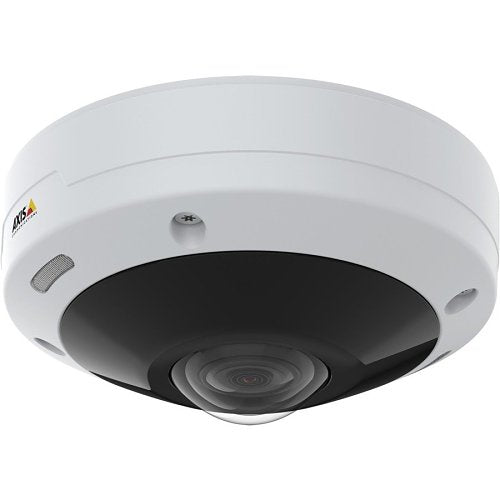

Axis Communications 02100-001 mini dome camera, 12MP

Free Delivery
£ 1,146 08
(Incl. VAT)

About this product

Axis Communications 02100-001 is a mini dome camera from the M43 range.

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image.

AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness.

Four built-in microphones and voice enhancer offers audio capture with great noise suppression.

Key features

  • 12MP sensor with 360° overview
  • Stereographic lens and Sharpdome 360
  • Lightfinder, Forensic WDR, OptimizedIR
  • Support for analytics with deep learning
  • 4 microphones with voice enhancer

If you are matching this to an existing installation, work from the 02100-001 part number rather than the description.

£ 1,146 08
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,146.08 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02100-001
Product Series
M43
Product Type
Fixed dome cameras
General information
Supported Network Protocols
IPv6
Technical information
Aperture
f/2.4
Built-in Microphone
Yes
Connectivity Technology
Wired
Effective resolution
12MP
Field of View
Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/2.4
Maximum Frame Rate
30fps
Minimum Focal Length
1.30mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
15.00m
Certifications
CE marking
Yes
Ingress protection
IP66
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-40°C
Operating Humidity
100%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0400lux
Shortest Shutter Speed
1/22000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
1.3mm
Lens Included
Yes
Maximum Focal Length
1.30mm
Memory
Memory Card Supported
Yes
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Depth
16.00cm
Durability
Vandal Resistant
Form Factor
Dome
Height
69.00mm
Weight
850.00g
Width
16.00cm
Power description
Maximum Power Consumption
16.00W
Power over Ethernet (PoE)
Yes
Product information
Diameter
149.00mm
Mount Type
Recessed Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
1280 x 720
Miscellaneous
Environmental certification
IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, NEMA TS 2 (2.2.7-2.2.9)
Features
Audio Detection, Built-in Infrared Illuminator, Built-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact protection
IK09, IK10
Indoor or outdoor use
Outdoor
Package Contents
M4308-PLE Panoramic Camera Installation Guide Windows decoder1-user License Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 Bit , Mounting Bracket Cable Hole Lid View Protector
Attributes
Package Contents
M4308-PLE Panoramic Camera Installation Guide Windows decoder1-user License Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 Bit , Mounting Bracket Cable Hole Lid View Protector
Weight
850.00g

Specifications

Brand Name Axis Communications
Manufacturer Part Number 02100-001
Product Series M43
Product Type Fixed dome cameras

General information

Supported Network Protocols IPv6

Technical information

Aperture f/2.4
Built-in Microphone Yes
Connectivity Technology Wired
Effective resolution 12MP
Field of View Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/2.4
Maximum Frame Rate 30fps
Minimum Focal Length 1.30mm
Night Vision Yes
Night Vision Type Infrared (IR)
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG, MPEG-4 Visual
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 15.00m

Certifications

CE marking Yes
Ingress protection IP66

Environmental conditions

Maximum Operating Temperature 50°C
Minimum Operating Temperature -40°C
Operating Humidity 100%

Exposure

Longest Shutter Speed 1 Second
Minimum Illumination 0.0400lux
Shortest Shutter Speed 1/22000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 1.3mm
Lens Included Yes
Maximum Focal Length 1.30mm

Memory

Memory Card Supported Yes

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Depth 16.00cm
Durability Vandal Resistant
Form Factor Dome
Height 69.00mm
Weight 850.00g
Width 16.00cm

Power description

Maximum Power Consumption 16.00W
Power over Ethernet (PoE) Yes

Product information

Diameter 149.00mm
Mount Type Recessed Mount

Storage

Storage Type SD Card

Video

Maximum Resolution 1280 x 720

Miscellaneous

Environmental certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, NEMA TS 2 (2.2.7-2.2.9)
Features Audio Detection, Built-in Infrared Illuminator, Built-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact protection IK09, IK10
Indoor or outdoor use Outdoor
Package Contents M4308-PLE Panoramic Camera Installation Guide Windows decoder1-user License Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 Bit , Mounting Bracket Cable Hole Lid View Protector

Attributes

Package Contents M4308-PLE Panoramic Camera Installation Guide Windows decoder1-user License Drill Hole Template Cable Gaskets Connector Guard I/O Connector RESISTORX TR20 Bit , Mounting Bracket Cable Hole Lid View Protector
Weight 850.00g

Axis Communications 02100-001 mini dome camera

Axis Communications 02100-001 mini dome camera, 12MP

Who this is for

For the installer — this is the mini dome camera supplied under Axis Communications part number 02100-001. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a mini dome camera made by Axis Communications. The part number 02100-001 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this mini dome camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact mini dome camera I have been quoted? Check the manufacturer part number 02100-001 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 02100-001 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
