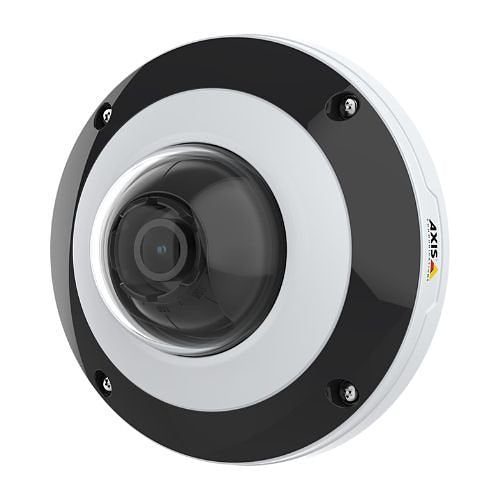

Axis Communications 02364-001 mini dome sensor, 1920 x 1200
Free Delivery
£
348
52
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Axis Communications 02364-001 is a mini dome sensor from the F range.
This ruggedized and discreet mini-dome sensor makes it an ideal solution for retail stores or offices. Designed to withstand shock and vibrations, it’s also a great fit for surveillance onboard buses. Only compatible with 2nd generation main units and cables.
Key features
- Only compatible with 2nd generation main units and cables
- 111° Horizontal field of view
- IR Illumination
- IP6K9K For sterile environments
- Exchangeable M12 lenses
- Discreet and cost-effective
- Multi-purpose
- High video usability
-
Download
- 02364-001 — Product Manual
£
348
52
Price
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
02364-001
Product Series
F
Product Type
Sensor units
General information
Application/Usage
Outdoor, Surveillance Camera
Package Type
Pack
Packaged Quantity
1
Technical information
Aperture
f/2.0
Field of View
Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Maximum Aperture
f/2
Maximum Frame Rate
60fps
Night Vision
Yes
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66, IP67, IP6K9K
Display & graphics
Maximum video resolution
1920 x 1200
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Exposure
Minimum Illumination
0.3000lux
Lens
Focal Length
2.8mm
Physical characteristics
Colour
White
Depth
130.00mm
Height
73.00mm
Weight
300.00g
Width
115.00mm
Miscellaneous
Compatibility
AXIS Main Unit:
Environmental certification
EN 50155 Class OT4/ST2 (2007: Class TX), IEC 60068-2-27, IEC 60068-2-64, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 20653 IP6K9K, NEMA 250 Type 4X
Impact protection
IK10
Attributes
Compatibility
AXIS Main Unit:
Indoor or outdoor use
Outdoor
Weight
300.00g
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02364-001 |
| Product Series | F |
| Product Type | Sensor units |
General information
| Application/Usage | Outdoor, Surveillance Camera |
|---|---|
| Package Type | Pack |
| Packaged Quantity | 1 |
Technical information
| Aperture | f/2.0 |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 60fps |
| Night Vision | Yes |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66, IP67, IP6K9K |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1200 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
Exposure
| Minimum Illumination | 0.3000lux |
|---|
Lens
| Focal Length | 2.8mm |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 130.00mm |
| Height | 73.00mm |
| Weight | 300.00g |
| Width | 115.00mm |
Miscellaneous
| Compatibility | AXIS Main Unit: |
|---|---|
| Environmental certification | EN 50155 Class OT4/ST2 (2007: Class TX), IEC 60068-2-27, IEC 60068-2-64, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 20653 IP6K9K, NEMA 250 Type 4X |
| Impact protection | IK10 |
Attributes
| Compatibility | AXIS Main Unit: |
|---|---|
| Indoor or outdoor use | Outdoor |
| Weight | 300.00g |
