Axis Communications 02897-001 multidirectional IP camera, 41MP
About this product

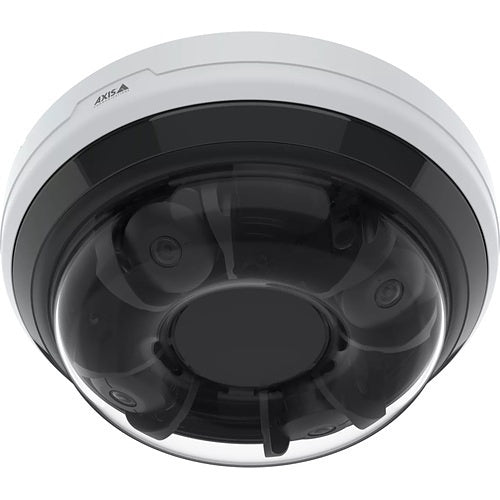

Axis Communications 02897-001 is a multidirectional IP camera.
AXIS P3747-PLVE with remote Pan-Tilt-Roll and Zoom installation motors enables flexible installations, reducing time and maintenance costs. The product is ideal for 360 and 270 surveillance with 4 individual sensors in one product, requiring only one cable to be drawn and one IP Address. With 4x5MP (20MP) resolution (4 - 3), the camera has excellent image quality, in day-time and low light situations, comes with Axis lightfinder and Forensic WDR and include 360 degrees IR coverage.
The camera has AI capabilities up to 4 sensors.
Key features
- 4*5 MP at 20 fps per channel
- Remote pan, tilt, roll, zoom (PTRZ)
- Support for powerful analytics
- 360° IR illumination with individually controlled LEDs
- Built-in cybersecurity with Axis Edge Vault
-
Download
- 02897-001 — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Lens
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Axis Communications |
|---|---|
| Manufacturer Part Number | 02897-001 |
| Product Type | Fixed dome cameras |
Technical information
| Effective resolution | 41MP |
|---|---|
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/2.7 |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 3.18mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | RGB CMOS |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP66 |
Display & graphics
| Image Sensor Size | 1/2.7" |
|---|---|
| Maximum video resolution | 2592 x 1944 |
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 10-100% |
| Operating Temperature (T-T) | -40-50°C |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.1500lux |
Lens
| Focal Length | 3.18-7.42mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 7.42mm |
| Minimum Aperture | f/1.6 |
Physical characteristics
| Colour | White |
|---|
Power description
| Input Voltage | 10-28V DC, 20-24V AC |
|---|
Product information
| Mount Type | Ceiling Mount, Corner Mount |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental certification | CE, FCC, UL |
|---|---|
| Environmental status | Yes |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 10-28V DC, 20-24V AC |
